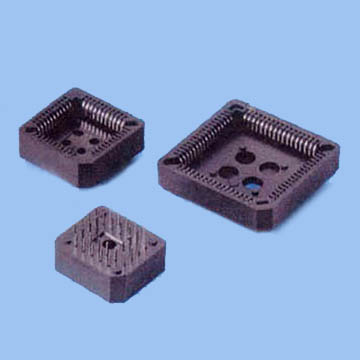

 PLCC SOCKET DIP TYPE Pitch:2.54mm PBT and PPS RoHS (11/07)

2110

PLCC SOCKET DIP TYPE Pitch:2.54mm PBT and PPS RoHS (11/07)

Specifications

  • Insulator Material: PBT & 30% Glass Fiber (UL 94V-0)/ PPS & 40% Glass Fiber (UL 94V-0)
  • Contact Resistance: 30mΩ Max at DC 100MA
  • Insulation Resistance: 1000mΩ Min at DC 500V
  • Current Rating: 1AMP
  • Dielectric Withstanding Voltage: AC 500V for 1minute
  • Temperature Rating:-55°C ~ +105°C
  • Contact Material: Phosphor Bronze

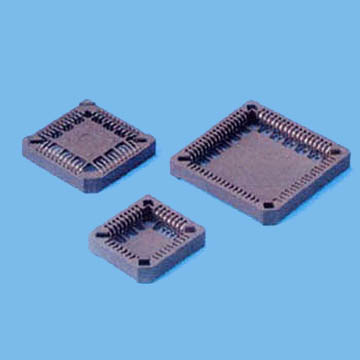

PLCC SOCKET SMT TYPE Pitch:1.27mm RoHS (2011/9)

2111

PLCC SOCKET SMT TYPE Pitch:1.27mm RoHS (2011/9)

Specifications

  • Insulator Material: PPS & 40% Glass Fiber (UL 94V-0)
  • Contact Resistance: 30mΩ Max at DC 100MA
  • Insulation Resistance: 1000mΩ Min at DC 500V
  • Current Rating: 1AMP
  • Dielectric Withstanding Voltage: AC 500V for 1minute
  • Temperature Rating: -55℃~+105℃
  • Contact Material: Phosphor Bronze

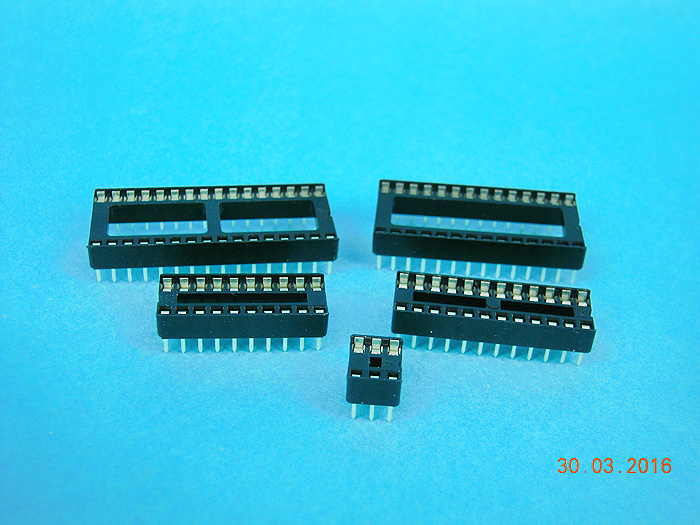

I.C. Socket Stamped Pin Pitch:2.54mm RoHS

2120-XXXE

I.C. Socket Stamped Pin Pitch:2.54mm RoHS

Specifications

  • Insulator Material: PBT & 30% Glass Fiber (UL 94V-0)
  • Contact Resistance: 30MΩ at DC 100MA
  • Insualtion Resistance: 1000MΩ Min at DC 250V
  • Current Rating: 1 AMP
  • Dielectric Withstanding Voltage: AC 500V for 1minute
  • Temperature Rating: -40℃ ~ +85℃
  • Contact Material: Phosphor Bronze
  • Plating:Tin Plated.

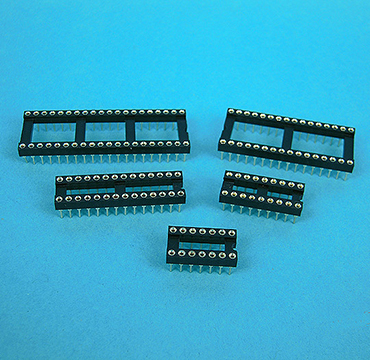

I.C Socket  Machine Pin  Pitch:2.54mm RoHS

2121-XXXE

I.C Socket Machine Pin Pitch:2.54mm RoHS

Specifications

  • Current Rating: 1 .0A AC/DC
  • Voltage Rating:100V AC/DC
  • Contact Resistance: 15m ohm. max.
  • Insulator Resistance:5000M ohm. Min.
  • Withstanding Voltage:1000V AC For One Minute
  • Operating Temperature Range:-40℃ ~ +105℃


Material And Finish

  • Insulator : PBT (UL 94V-0)
  • Standard Color: Black
  • Contact : Beryllium Copper(Becu) Gold Plated
  • Sleeve Barrel:Copper Alloy Tin Plated

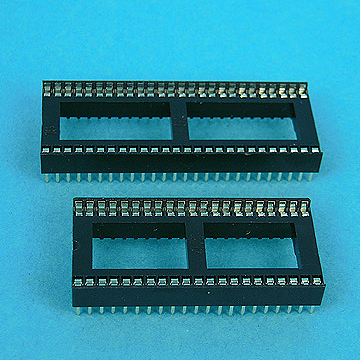

I.C Socket  Stamped Pin  Pitch:1.778mm RoHS

2122-XXXE

I.C Socket Stamped Pin Pitch:1.778mm RoHS

Specifications

  • Current Rating: 1A
  • Dielectric withstanding Voltage: 1000v RMS/minute
  • Insulator resistance: 5000 Megohms min.
  • Contact resistance: 20 milliohms intial
  • 30 milliohms after test.
  • Operating temperatures :-55℃ to +85℃
  • Insertion force: 340g (12 oz) max.per contact
  • Withdrawal force: 80g (2.82oz) min.per contact


Material

  • Contact: phosphor Bronze thickness 0.17mm
  • Contact Plating: Sn-Cu plated 120u"~200u"
  • Insulator: PBT-4830, UL 94V-0
