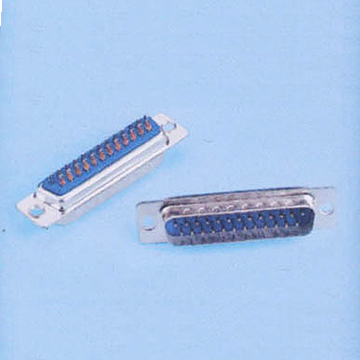

3220 CONNECTOR SOLDER TYPE  (STAMPED CONTACT)

3220

3220 CONNECTOR SOLDER TYPE (STAMPED CONTACT)

Specifications

  • Insulator: PBT + 30% Glass Fiber, UL94V-0
  • Contact: Brass or Phosphor Bronze
  • Current Rating (Max): 5 amp AC/DC
  • Withstanding Voltage: 1000 VAC
  • Insulation Resistance (Min): 1000 mΩ
  • Contact Resistance (Max): 30 mΩ
  • Operating Temperature: -55℃~+105℃

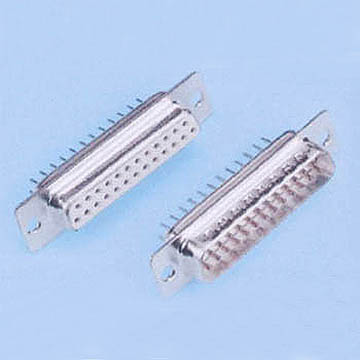

3222 CONNECTOR 180° DIP P.C.B TYPE  (STAMPED CONTACT)

3222

3222 CONNECTOR 180° DIP P.C.B TYPE (STAMPED CONTACT)

Specifications

  • Insulator: PBT + 30% Glass Fiber, UL94V-0
  • Contact: Brass or Phosphor Bronze
  • Current Rating (Max): 3 amp AC/DC
  • Withstanding Voltage: 1000 VAC
  • Insulation Resistance(Min): 30mΩ
  • Operating Temperature: -55℃ +105℃

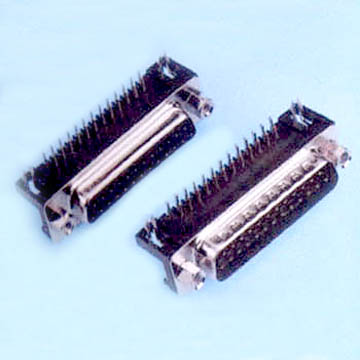

P.C.B RIGHT ANGLE TYPE  (STAMPED CONTACT) (11/07)

3223

P.C.B RIGHT ANGLE TYPE (STAMPED CONTACT) (11/07)

Specifications

  • Shell: Steel, Tin-plated
  • Insulator: PBT + 30% Glass Fiber, UL94V-0
  • Contact: Brass or Phosphor Bronze
  • Current Rating (Max): 5 amp AC/DC
  • Withstanding Voltage: 1000 VAC
  • Insulation Resistance (Min): 1000 mΩ
  • Contact Resistance(Max): 30 mΩ
  • Operating Temperature: -55℃ ~ + 105℃

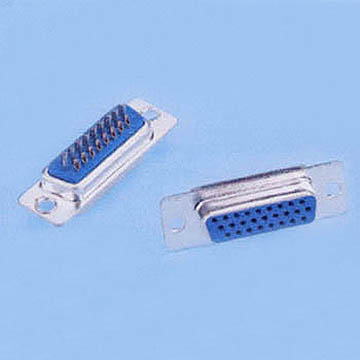

3224 HIGH DENSITY CONNECTOR SOLDER TYPE  (STAMPED CONTACT)

3224

3224 HIGH DENSITY CONNECTOR SOLDER TYPE (STAMPED CONTACT)

Specifications

  • Insulator: PBT + 30% Glass Fiber, UL94V-0
  • Contact: Brass or Phosphor Bronze
  • Current Rating (Max): 3 amp AC/DC
  • Withstanding Voltage: 1000 VAC
  • Insulation Resistance (Min): 1000 mΩ
  • Contact Resistance (Max): 30 mΩ
  • Operating Temperature: -55℃ ~ +105℃

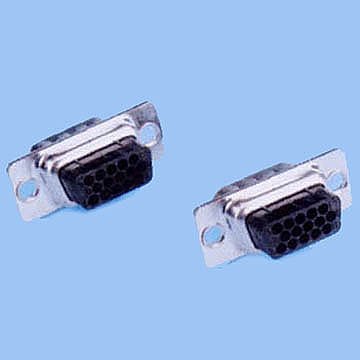

3226 D-SUB HIGH DENSITY CONNECTOR CRIMP TYPE

3226

3226 D-SUB HIGH DENSITY CONNECTOR CRIMP TYPE

Specifications

  • Shell: Steel, Tin-plated
  • Insulator: PBT + 30% Glass Fiber, UL94V-0
  • Contact: Brass or Phosphor Bronze
  • Current Rating (Max): 3 amp AC/DC
  • Withstanding Voltage: 1000 VAC
  • Insulation Resistance (Min): 1000 mΩ
  • Contact Resistance (Max): 30 mΩ
  • Operating Temperature: -55℃ ~ +105℃

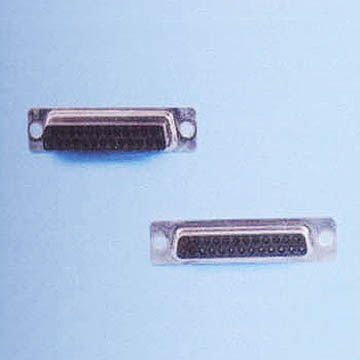

3221 D-SUB CONNECTOR CRIMP TYPE

3221

3221 D-SUB CONNECTOR CRIMP TYPE

Specifications

  • Shell: Stell, Tin-plated
  • Insulator: PBT + 30% Glass Fiber, UL94V-0
  • Contact: Brass or Phosphor Bronze
  • Current Rating (Max): 5 amp AC/DC
  • Withstanding Voltage: 1000 VAC
  • Insulation Resistance (Min): 1000 mΩ
  • Contact Resistance (Max): 30 mΩ
  • Operating Temperature: -55℃ ~ +105℃

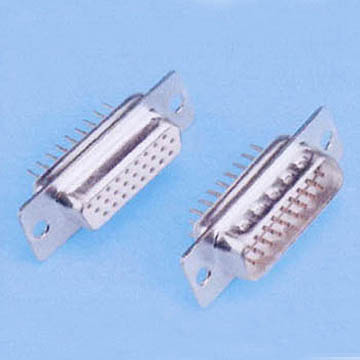

3227 D-SUB HIGH DENSITY CONNECTOR 180° DIP P.C.B TYPE

3227

3227 D-SUB HIGH DENSITY CONNECTOR 180° DIP P.C.B TYPE

Specifications

  • Insulator: PBT + 30% Glass Fiber, UL94V-0
  • Contact: Brass or Phosphor Bronze
  • Current Rating (Max): 3 amp AC/DC
  • Withstanding Voltage: 1000 VAC
  • Insulation Resistance (Min): 1000 mΩ
  • Contact Resistance (Max): 30mΩ
  • Operating Temperature: -55℃ ~ +105℃

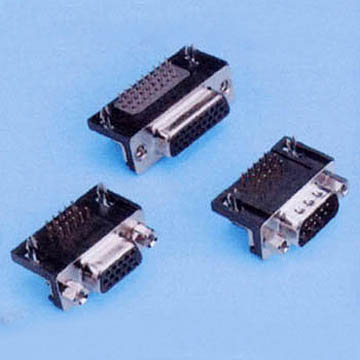

D-SUB HIGH DENSITY CONNECTOR  P.C.B RIGHT ANGLE TYPE (STAMPED CONTACT)  (11/07)

3228

D-SUB HIGH DENSITY CONNECTOR P.C.B RIGHT ANGLE TYPE (STAMPED CONTACT) (11/07)

Specifications

  • Shell: Steel, Tin-plated
  • Insulator: PBT + 30% Glass Fiber, UL94V-0
  • Contact: Brass or Phosphor Bronze
  • Current Rating (Max): 3 amp AC/DC
  • Withstanding Voltage: 1000 VAC
  • Insulation Resistance (Min): 1000 mΩ
  • Contact Resistance (Max): 30 mΩ
  • Operating Temperature: -55℃ ~ +105℃
