BNC 75Ω Angle Adapters Jack / Plug

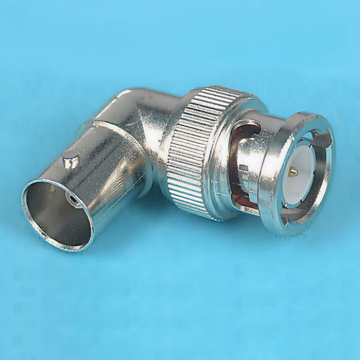

328A-7BL-03

BNC 75Ω Angle Adapters Jack / Plug

Specifications

  • Impedance: 75Ω
  • Voltage Rating: 500 V RMS.
  • Freqency Range: 0~4 GHz

Material & Finish

  • Male Contact: Brass, Gold Plated
  • Female Contact: Bronze, Gold Plated
  • Insulator: PE-606
  • Body: Zinc Alloy, Nickel Plated

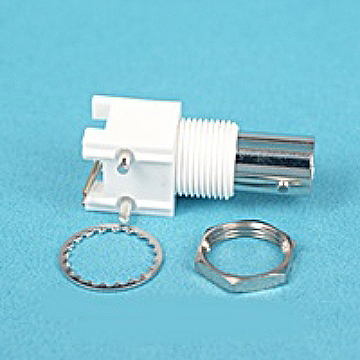

BNC 50 Ω R/A PCB/Panel Mount Jack,White With Fitting H:12.3mm

3280A50O

BNC 50 Ω R/A PCB/Panel Mount Jack,White With Fitting H:12.3mm

Specifications

  • Center Contact: Phosphor Bronze, Gold Plating
  • Body: Zinc Alloy, Nickel Plating
  • Housing: PBT (94 V-0), White
  • Insulator: PE-606
  • Mounting Post: Brass, Tin Plating
  • Solder TAll: Copper Wire, Tin Plating
  • Washer: Steel, Nickel Plating
  • Nut: Brass, Nickel Plating

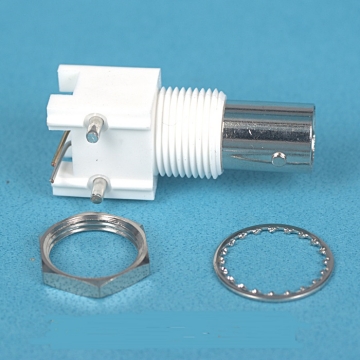

BNC Socket 75Ω R/A With Washer+Nut H:12.3mm

3280A75O

BNC Socket 75Ω R/A With Washer+Nut H:12.3mm

Specifications

  • Center Contact: Phosphor Bronze, Gold Plating
  • Body: Zinc Alloy, Nickel Plating
  • Housing: PBT (94 V-0), White
  • Insulator: PE-606
  • Mounting Post: Brass, Tin Plating
  • Solder TAll: Copper Wire, Tin Plating
  • Washer: Steel, Nickel Plating
  • Nut: Brass, Nickel Plating
BNC PCB 50Ω 90 °  L:28.1 Connectors RoHS

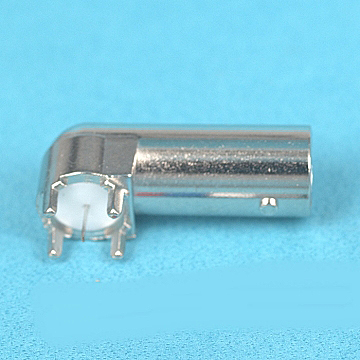

3280-BR50E

BNC PCB 50Ω 90 ° L:28.1 Connectors RoHS

Specifications

  • Center Contact: Phosphor Bronze, Tin Plating
  • Body: Zinc Alloy, Nickel Plating
  • Insulator: TPX
  • Insulator: TEFLON
  • Center Contact: Phosphor Bronze, 3u'' Gold Plating

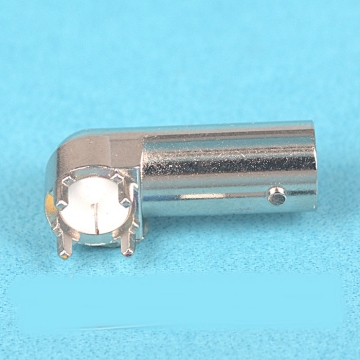

BNC 75Ω 90°  R/A Connectors

3280-BR75E

BNC 75Ω 90° R/A Connectors

Specifications

  • Center Contact: Phosphor Bronze, Tin Plating
  • Body: Zinc Alloy, Nickel Plating
  • Insulator: TPX
  • Insulator: TEFLON
  • Center Contact: Phosphor Bronze, 3u'' Gold Plating

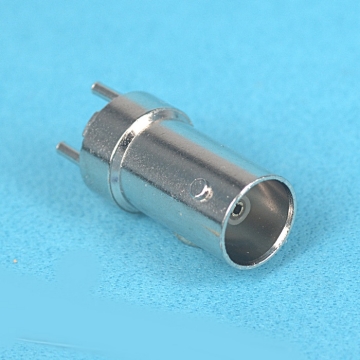

BNC 75 Ω PCB Receptacle (JACK)

3280-BV75E

BNC 75 Ω PCB Receptacle (JACK)

Specifications

  • Center Contact : Phosphor Bronze, Gold Plating
  • Body: Zinc Alloy, Nickel Plating
  • Insulator : TPX
BNC PCB Receptacle, With Housing With Fiting 75Ω V/A RoHS

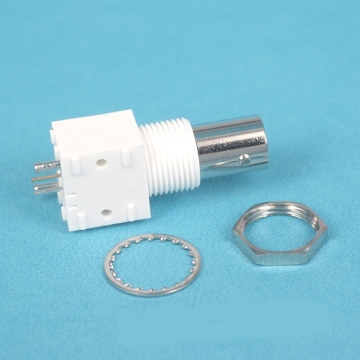

3280-V75OW

BNC PCB Receptacle, With Housing With Fiting 75Ω V/A RoHS

Specifications

  • Center Contact : Phosphor Bronze, Gold Plating
  • Body : Zinc Alloy, Nickel Plating
  • Housing : PBT (94 V-0), White
  • Insulator : PE-606
  • Mounting Post : Brass, Tin Plating
  • Solder Tail: Copper Wire, Tin Plating
  • Washer : Steel, Nickel Plating
  • Nut : Brass, Nickel Plating
BNC 50Ω PCB Receptacle (Jack)

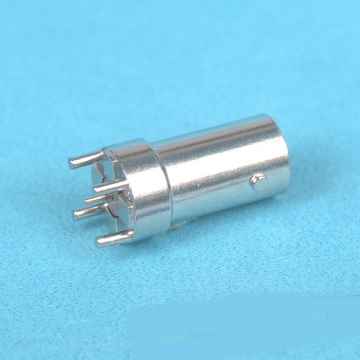

3280-BV50E

BNC 50Ω PCB Receptacle (Jack)

Center Contact : Phosphor Bronze, Gold Plating
BNC Series With Washer+Nut, 50Ω Zinc Alloy Nickel Plating

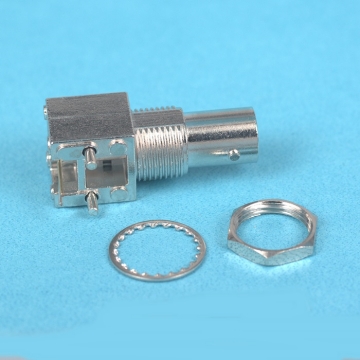

328150O-2

BNC Series With Washer+Nut, 50Ω Zinc Alloy Nickel Plating

Specifications

  • Center Contact : Phosphor Bronze, Gold Plating
  • Body : Zinc Alloy, Nickel Plating
  • Insulator : PE-606
  • Mounting Post : Brass, Tin Plating
  • Solder Tail: Copper Wire, Tin Plating
  • Washer : Steel, Nickel Plating
  • Nut : Brass, Nickel Plating

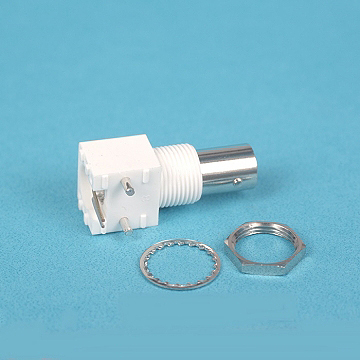

BNC 70Ω R/A PCB Mount JACK, White

328175O-3

BNC 70Ω R/A PCB Mount JACK, White

Specifications

  • Center Contact : Phosphor Bronze, Gold Plating
  • Body : Zinc Alloy, Nickel Plating
  • Housing: PBT (94 V-0), White
  • Insulator : PE-606
  • Mounting Post : Brass, Tin Plating
  • Solder Tall: Copper Wire, Tin Plating
  • Washer : Steel, Nickel Plating
  • Nut : Brass, Nickel Plating

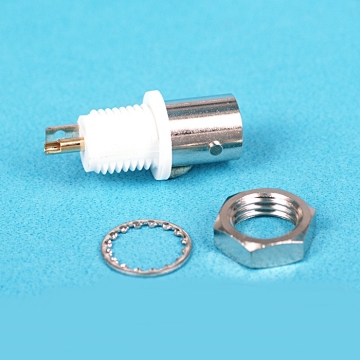

BNC 50Ω JACK Isolated Ground Bulkhead With  Fitting

3285-50O

BNC 50Ω JACK Isolated Ground Bulkhead With Fitting

Specifications

  • Center Contact : Phosphor Bronze, Gold Plated
  • Ground Ring: Brass, Tin Plated
  • Insulator : PBT (94 V-0)
  • Body : Zinc Alloy, Nickel Plated
  • Nut : Brass, Nickel Plated
  • Washer : Steel, Nickel Plated

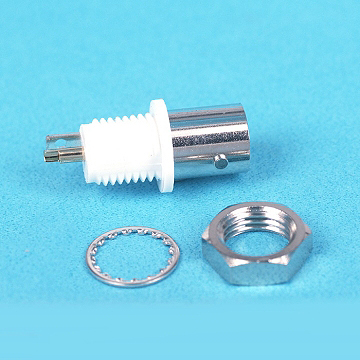

75Ω  BNC JACK Isolated Ground Bulkhead With  Fitting

3285-75O

75Ω BNC JACK Isolated Ground Bulkhead With Fitting

Specifications

  • Center Contact: Phosphor Bronze, Gold Plated
  • Ground Ring: Brass, Tin Plated
  • Insulator: PBT (94 V-0)
  • Body: Zinc Alloy, Nickel Plated
  • Nut: Brass, Nickel Plated
  • Washer: Steel, Nickel Plated

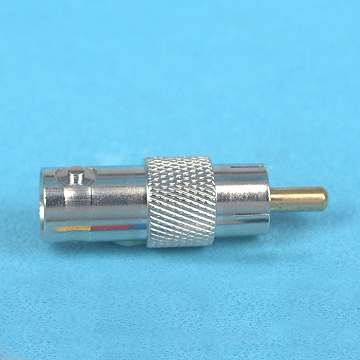

BNC Jack To RCA Plug Adaptor

3287E

BNC Jack To RCA Plug Adaptor

Specifications

  • Plating Thickness In Micro-Inches
  • Brass Per QQ-B-626
  • Nickel PL 70 Min Thick Over Copper Strike
  • Gold PL Flush Over Nickel PL 70 Min Thick Over Copper Strike

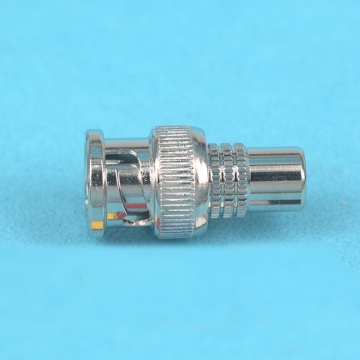

BNC Socket

3288E

BNC Socket

Coupling Nut: Zinc

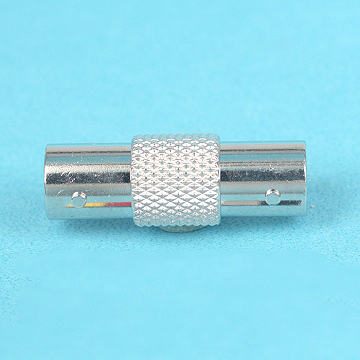

BNC Socket

3289E

BNC Socket

Finish: Nickel Plating
BNC Socket

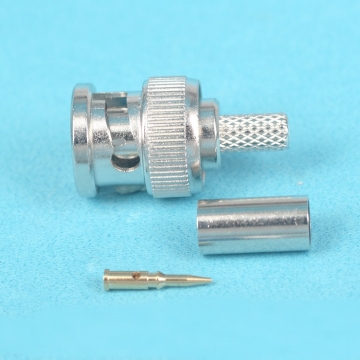

3290-5BP-01-PT

BNC Socket

Specifications

  • Impedance: 50Ω
  • Voltage Rating: 500V RMS
  • Frequency Range: 0~4 GHz
  • Interface Per Mil–C–39012C
  • For RG–58 Cable

Material & Finish

  • Body: Zinc Alloy, Nickel Plating
  • Gasket: Rubber, Red
  • Insulator: POM
  • Washer: Iron, Nickel Plating
  • Spring: SK–5, Bronze Plating
  • Ferrule: Brass, Nickel Plating
  • Pin: Brass, Gold Plating
BNC Socket

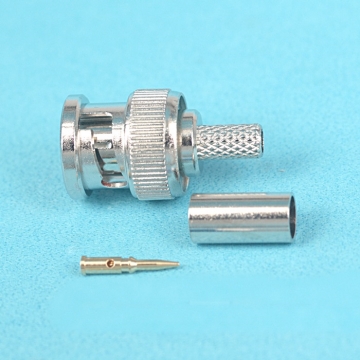

3290-7BP-01-PT

BNC Socket

Specifications

  • Impedance: 75Ω
  • Voltage Rating: 500V RMS
  • Frequency Range: 0~4 GHz
  • Interface Per Mil–C–39012C
  • For RG–58 Cable

Material & Finish

  • Body: Zinc Alloy, Nickel Plating
  • Gasket: Rubber, Red
  • Insulator: POM
  • Washer: Iron, Nickel Plating
  • Spring: SK–5, Bronze Plating
  • Ferrule: Brass, Nickel Plating
  • Pin: Brass, Gold Pl

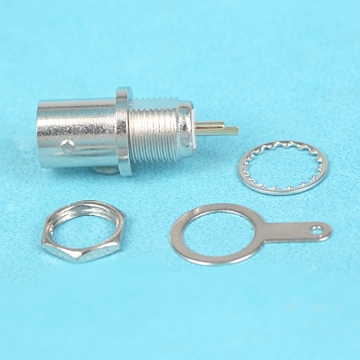

BNC Socket

3291-5BH-2B73-WNS

BNC Socket

Specifications

  • Body: Zinc Alloy, Nickel Plating
  • Dielectric: POM
  • Center Contact: Phosphor Bronze, Gold Plating
  • Washer: Steel, Nickel Plating
  • Nut: Iron, Nickel Plating
  • Solder Tag: Iron, Nickel Plating
Bulkhead Receptacle Front Mount With Fitting

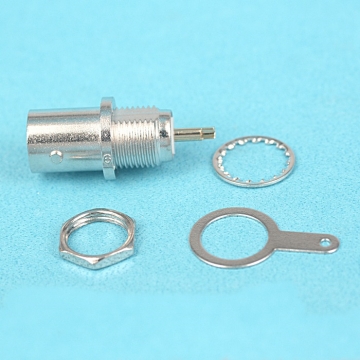

3291-7BH-2B73-WNS

Bulkhead Receptacle Front Mount With Fitting

Specifications

  • Body: Zinc Alloy, Nickel Plating
  • Dielectric: POM
  • Center Contact: Phosphor Bronze, Gold Plating
  • Washer: Steel, Nickel Plating
  • Nut: Iron, Nickel Plating
  • Solder Tag: Iron, Nickel Plating

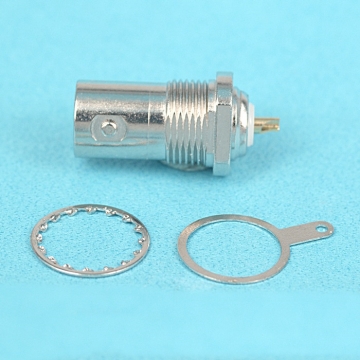

BNC Socket

3294-7BH-01WS

BNC Socket

Specifications

  • Body: Zinc Alloy, Nickel Plating
  • Dielectric: POM
  • Center Contact: Phosphor Bronze, Gold Plating
  • Washer: Steel, Nickel Plating
  • Nut: Iron, Nickel Plating
  • Solder Tag: Iron, Nickel Plating
BNC Socket

3296

BNC Socket

Specifications

  • Center Contact: Phosphor Bronze, Gold Plating
  • Body: Zinc Alloy, Nickel Plating
  • Insulator: TPX
