• RCA JACK SERIES

Please Click products below, and click Add to Inquiry List for inquiry.

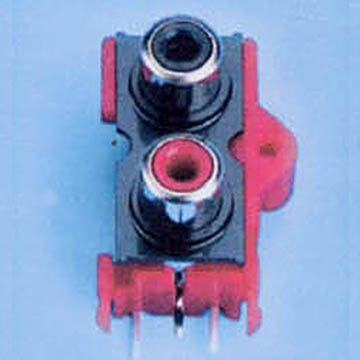

 RCA Jack Vertical two port  3pin

8710

RCA Jack Vertical two port 3pin

Specifications

  • Contact Resistance: 30m Ω Max. (initial)
  • Insulation Resistance: 100 Ω Min. at 500V DC
  • Withstanding Voltage: 500V AC for One Minute
  • Soldering Heat Test: 260 ±5℃ for 5 ±1 Seconds
  • Insertion Force: 0.3-3.0 Kg
  • Extraction Force: 0.3-3.0 Kg
  • Life Time: 5,000 Cycles Min
  • 8710 2P/14
  • 8710B (180∘)
  • 8710S Wire Soldering

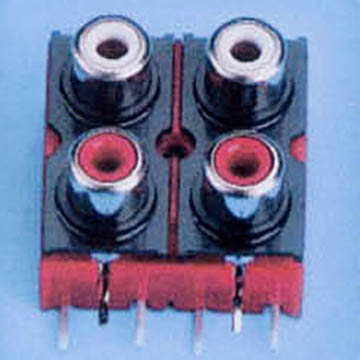

RCA Jack four port

8711

RCA Jack four port

4P 14/18

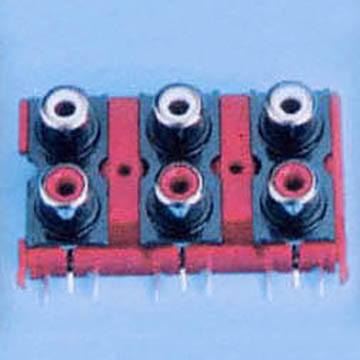

RCA Jack Six port

8712

RCA Jack Six port

Specifications

  • 8712 6P 14/18
  • 8712B (180∘)
  • 8712 Wire Soldering

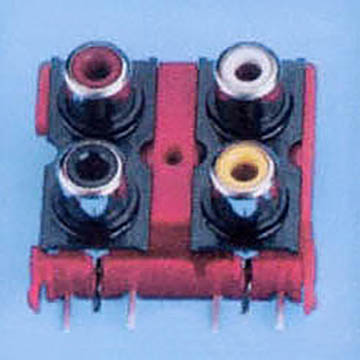

RCA Jack four port

8713

RCA Jack four port

8713 4P 14/14

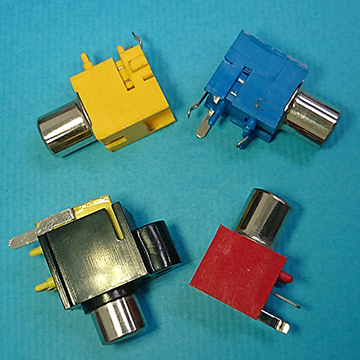

RCA Jack Single Port Right Angle

8714

RCA Jack Single Port Right Angle

Specifications

  • Contact Resistance: 30m Ohm Max. At AC 100mA Max.1KHz.
  • Insulation Resistance: 100M Ohm Min. At 500V DC.
  • Rated Voltage And Current: DC 12V,2A Max.
  • Dielectric Withstanding Voltage: 500V AC At 60Hz For 1 Minute.
  • Durability(Life Test): 4000 Cycles.
  • Insertion Force: 0.3-3.0 Kg.
  • Extraction Force: 0.3-3.0 Kg.

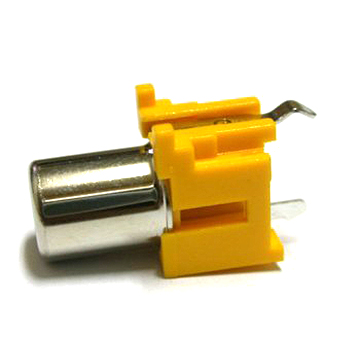

RCA JACK 1PORT 2PIN VERTICAL KINK

8710-2V

RCA JACK 1PORT 2PIN VERTICAL KINK

Specifications

  • Contact Resistance: 30m Ω Max. (initial)
  • Insulation Resistance: 100 Ω Min. at 500V DC
  • Withstanding Voltage: 500V AC for One Minute
  • Soldering Heat Test: 260 ±5℃ for 5 ±1 Seconds
  • Insertion Force: 0.3-3.0 Kg
  • Extraction Force: 0.3-3.0 Kg
  • Life Time: 5,000 Cycles Min

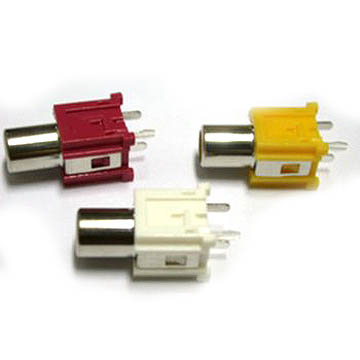

RCA JACK 1PORT 3PIN VERTICAL

8710-3V

RCA JACK 1PORT 3PIN VERTICAL

Specifications

  • Contact Resistance: 30m Ω Max. (initial)
  • Insulation Resistance: 100 Ω Min. at 500V DC
  • Withstanding Voltage: 500V AC for One Minute
  • Soldering Heat Test: 260 ±5℃ for 5 ±1 Seconds
  • Insertion Force: 0.3-3.0 Kg
  • Extraction Force: 0.3-3.0 Kg
  • Life Time: 5,000 Cycles Min

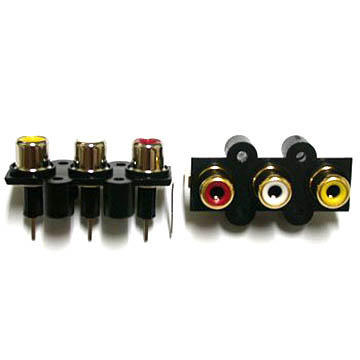

RCA JACK 3PORT 4PIN VERTIVAL 4 LOCK HOLD

8710-3LH

RCA JACK 3PORT 4PIN VERTIVAL 4 LOCK HOLD

Specifications

  • Contact Resistance: 30m Ω Max. (initial)
  • Insulation Resistance: 100 Ω Min. at 500V DC
  • Withstanding Voltage: 500V AC for One Minute
  • Soldering Heat Test: 260 ±5℃ for 5 ±1 Seconds
  • Insertion Force: 0.3-3.0 Kg
  • Extraction Force: 0.3-3.0 Kg
  • Life Time: 5,000 Cycles Min

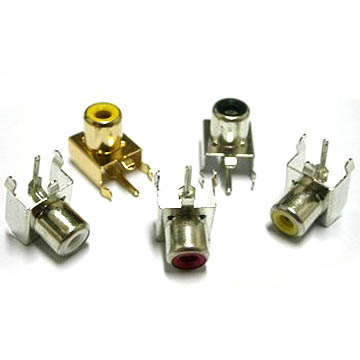

RCA JACK 1PORT 3PIN RIGHT ANGLE  SHIELD

8715-1(COLOR)

RCA JACK 1PORT 3PIN RIGHT ANGLE SHIELD

Specifications

  • Contact Resistance: 30m Ω Max. (initial)
  • Insulation Resistance: 100 Ω Min. at 500V DC
  • Withstanding Voltage: 500V AC for One Minute
  • Soldering Heat Test: 260 ±5℃ for 5 ±1 Seconds
  • Insertion Force: 0.3-3.0 Kg
  • Extraction Force: 0.3-3.0 Kg
  • Life Time: 5,000 Cycles Min

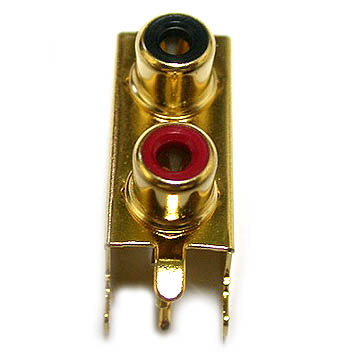

RCA JACK 2PORT GOLD FLASH VERTICAL

8715-2G

RCA JACK 2PORT GOLD FLASH VERTICAL

Specifications

  • Contact Resistance: 30m Ω Max. (initial)
  • Insulation Resistance: 100 Ω Min. at 500V DC
  • Withstanding Voltage: 500V AC for One Minute
  • Soldering Heat Test: 260 ±5℃ for 5 ±1 Seconds
  • Insertion Force: 0.3-3.0 Kg
  • Extraction Force: 0.3-3.0 Kg
  • Life Time: 5,000 Cycles Min

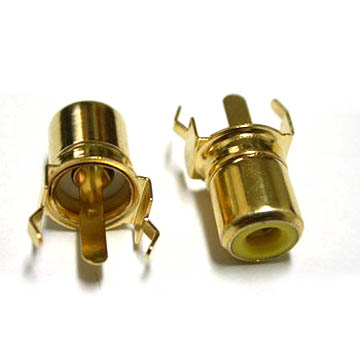

RCA JACK 1PORT GOLD FLASH VERTICAL

8715VG-1(COLOR)

RCA JACK 1PORT GOLD FLASH VERTICAL

Specifications

  • Contact Resistance: 30m Ω Max. (initial)
  • Insulation Resistance: 100 Ω Min. at 500V DC
  • Withstanding Voltage: 500V AC for One Minute
  • Soldering Heat Test: 260 ±5℃ for 5 ±1 Seconds
  • Insertion Force: 0.3-3.0 Kg
  • Extraction Force: 0.3-3.0 Kg
  • Life Time: 5,000 Cycles Min
