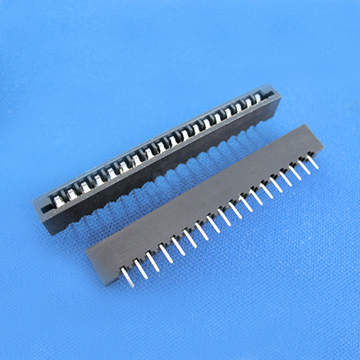

5410 F.P.C Pitch:2.54mm NO ZIF DIP TYPE

5410

5410 F.P.C Pitch:2.54mm NO ZIF DIP TYPE

Specifications

  • Current: 0.5A
  • Operating Temperature: -40℃~+ 105℃
  • Contact Resistance: 30 Milliohms Max
  • Insulation Resistance: 1000 Megaohms


Material

  • Housing: High Temperature Thermoplastic UL94V-0
  • Contact: Copper Alloys
  • Fitting Nail: Copper Alloys


Finishes

  • Contact: Tin / Lead Plated Over Nickel
  • Fitting Nail: Tin Plated Over Nickel

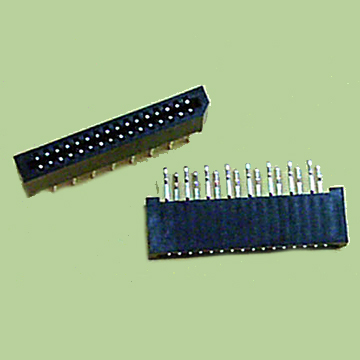

Pitch: 1.00mm NON ZIF FOR DIP TYPE (2011/10)

5430

Pitch: 1.00mm NON ZIF FOR DIP TYPE (2011/10)

Specifications

  • Current: 0.5A
  • Operating Temperature: -40℃~+ 105℃
  • Contact Resistance: 30 Milliohms Max
  • Insulation Resistance: 1000 Megaohms Min
  • Dielectric Strength: 500 VAC Min

Material

  • Housing: Thermoplastic UL94V-0
  • Contact: Copper Alloys

Finishes

  • Contact: Tin / Lead Plated Over Nickel

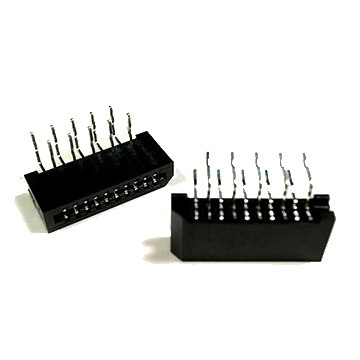

Pitch: 1.00mm NON ZIF FOR DIP TYPE (2011/09)

5431

Pitch: 1.00mm NON ZIF FOR DIP TYPE (2011/09)

Specifications

  • Current: 0.5A
  • Operating Temperature: -40℃~+ 105℃
  • Contact Resistance: 30 Milliohms Max
  • Insulation Resistance: 1000 Megaohms Min
  • Dielectric Strength: 500 VAC Min


Material

  • Housing: Thermoplastic UL94V-0
  • Contact: Copper Alloys


Finishes

  • Contact: Tin / Lead Plated Over Nickel

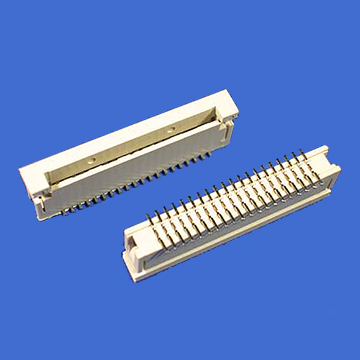

5432 Pitch: 1.00mm NON ZIF FOR SMT TYPE VERTICAL

5432

5432 Pitch: 1.00mm NON ZIF FOR SMT TYPE VERTICAL

Specifications

  • Current: 0.5A
  • Operating Temperature: -40℃~+ 105℃
  • Contact Resistance: 30 Milliohms Max
  • Insulation Resistance: 1000 Megaohms Min
  • Dielectric Strength: 500 VAC Min


Material

  • Housing: High Temperature Thermoplastic UL94V-0
  • Contact: Copper Alloys


Finishes

  • Contact: Tin / Lead Plated Over Nickel

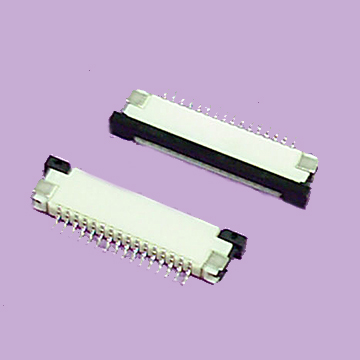

pitch: 1.00mm ZIF FOR SMT TYPE UPPER (2011/9)

5433

pitch: 1.00mm ZIF FOR SMT TYPE UPPER (2011/9)

Specifications

  • Current: 0.5A
  • Operating Temperature: -40℃~+ 105℃
  • Contact Resistance: 30 Milliohms Max
  • Insulation Resistance: 1000 Megaohms Min
  • Dielectric Strength: 500 VAC Min


Material

  • Housing: High Temperature Thermoplastic UL94V-0
  • Actuator: High Temperature Thermoplastic UL94V-0
  • Contact: Copper Alloys


Finishes

  • Contact: Tin / Lead Plated Over Nickel
  • Fitting Nail: Tin / Lead Plated Over Nickel

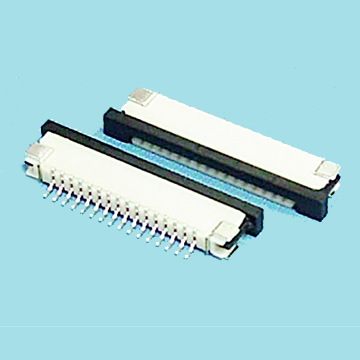

pitch: 1.00mm  ZIF FOR SMT TYPE BOTTOM  (2011/9)

5434

pitch: 1.00mm ZIF FOR SMT TYPE BOTTOM (2011/9)

Specifications

  • Current: 0.5A
  • Operating Temperature: -40℃~+ 105℃
  • Contact Resistance: 30 Milliohms Max
  • Insulation Resistance: 1000 Megaohms Min
  • Dielectric Strength: 500 VAC Min


Material

  • Housing: High Temperature Thermoplastic UL94V-0
  • Contact: Copper Alloys
  • Fitting Nail: Copper Alloys


Finishes

  • Contact: Tin / Lead Plated Over Nickel
  • Fitting Nail: Tin Plated Over Nickel

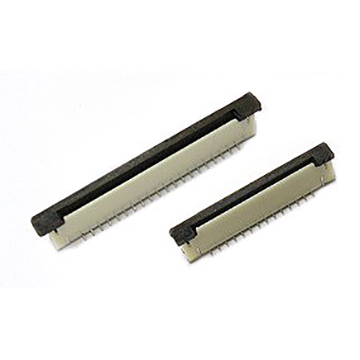

 F.P.C. pitch:0.5mm Horizontal and  Vertical  ZIF SMT TYPE (2011/9)

5435

F.P.C. pitch:0.5mm Horizontal and Vertical ZIF SMT TYPE (2011/9)

Specifications

  • Current: 0.5A
  • Operating Temperature: -40℃~+ 105℃
  • Contact Resistance: 30 Milliohms Max
  • Insulation Resistance: 1000 Megaohms Min
  • Dielectric Strength: 500 VAC Min


Material

  • Housing: High Temperature Thermoplastic UL94V-0
  • Contact: Copper Alloys
  • Fitting Nail: Copper Alloys


Finishes

  • Contact: Tin / Lead Plated Over Nickel
  • Fitting Nail: Tin Plated Over Nickel
