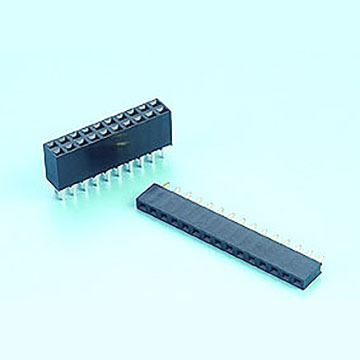

 FEMALE HEADER PITCH: 2.54mm

2160

FEMALE HEADER PITCH: 2.54mm

Specifications

  • Insulator Material: PBT & 30% Glass Fiber (UL 94V-0)
  • Contact Resistance: 30m Ω Max at DC 100MA
  • Insulation Resistance: 1000m Ω Min at DC500V
  • Current Rating: 1AMP
  • Dielecric Withstanding Voltage: AC 500V for 1 minute
  • Temperature Rating: -55℃ ~ +105℃
  • Contact Material: Phosphor Bronze

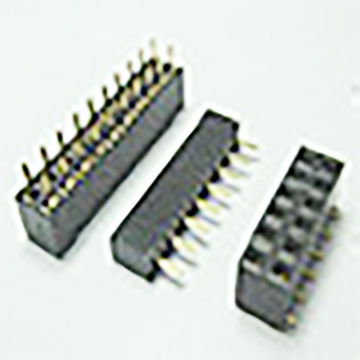

Female Header pitch:2.54 x 2.54mm, profile:5.0mm, Dual Rows, Straight tyep (2011/10)

2160AA

Female Header pitch:2.54 x 2.54mm, profile:5.0mm, Dual Rows, Straight tyep (2011/10)

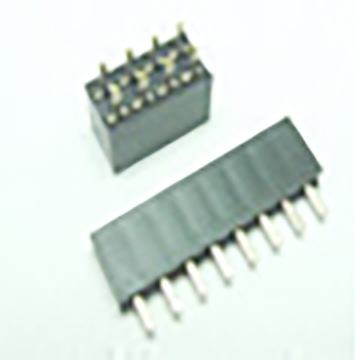

Female Header pitch:2.54 x 2.54mm, profile: 5.7mm, Dual Row, straight type (2011/10)

2160A2

Female Header pitch:2.54 x 2.54mm, profile: 5.7mm, Dual Row, straight type (2011/10)

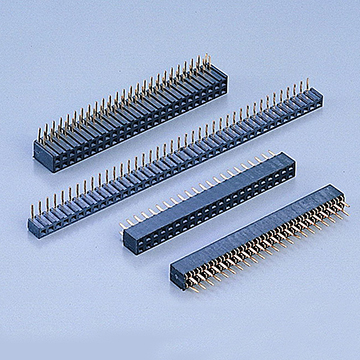

 FEMALE HEADER  PITCH: 2.00mm (2011/8)

2161

FEMALE HEADER PITCH: 2.00mm (2011/8)

Specifications

  • Insulator Material: PBT & 30% Glass Fiber (UL 94V-0)
  • Contact Resistance: 30m Ω Max at DC 100MA
  • Insulation Resistance: 1000m Ω Min at DC500V
  • Current Rating: 1AMP
  • Dielecric Withstanding Voltage: AC 500V for 1 minute
  • Temperature Rating: -55℃ ~ +105℃
  • Contact Material: Phosphor Bronze

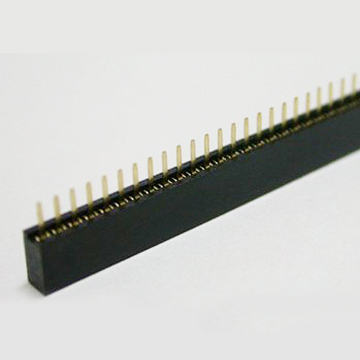

 FEMALE HEADER PITCH:1.27MM SINGLE ROW / STRIGHT

2162A2

FEMALE HEADER PITCH:1.27MM SINGLE ROW / STRIGHT

Specifications

  • Current Rating: 1AMP
  • Insulator Resistance:5000MΩMin
  • Dielectric Withstanding:AC 500V
  • Operating Temperature:-40°C~+105°C
  • Max Processing Temp:230° for 30SECONDS
  • Contacy Material:Phosphor Bronze or Bronze
  • Insulator Material:Polyester UL94V-0
  • NYLON-6T
  • FINISH:GOLD FLASH

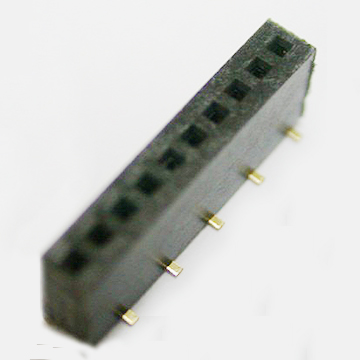

 FEMALE HEADER PITCH:1.27MM SINGLE ROW SMT TYPE

2162A3

FEMALE HEADER PITCH:1.27MM SINGLE ROW SMT TYPE

Specifications

  • Current Rating: 1AMP
  • Insulator Resistance:5000MΩMin
  • Dielectric Withstanding:AC 500V
  • Operating Temperature:-40°C~+105°C
  • Max Processing Temp:230° for 30SECONDS
  • Contacy Material:Phosphor Bronze or Bronze
  • Insulator Material:Polyester UL94V-0
  • NYLON-6T
  • FINISH:GOLD FLASH

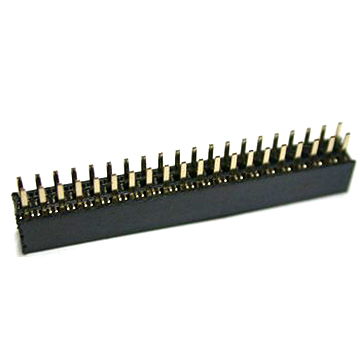

FEMALE HEADER PITCH:1.27*1.27MM DUAL ROW / STRIGHT

2162B1

FEMALE HEADER PITCH:1.27*1.27MM DUAL ROW / STRIGHT

Specifications

  • Current Rating: 1AMP
  • Insulator Resistance:5000MΩMin
  • Dielectric Withstanding:AC 500V
  • Operating Temperature:-40°C~+105°C
  • Max Processing Temp:230° for 30SECONDS
  • Contacy Material:Phosphor Bronze or Bronze
  • Insulator Material:Polyester UL94V-0
  • NYLON-6T
  • FINISH:GOLD FLASH

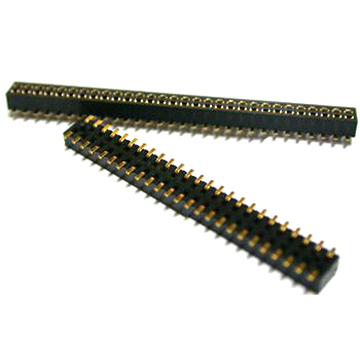

FEMALE HEADER PITCH:1.27*1.27MM DUAL ROW SMT TYPE H:2.2MM

2162B2

FEMALE HEADER PITCH:1.27*1.27MM DUAL ROW SMT TYPE H:2.2MM

Specifications

  • Current Rating: 1AMP
  • Insulator Resistance:5000MΩMin
  • Dielectric Withstanding: AC 500V
  • Operating Temperature:-40°C~+105°C
  • Max Processing Temp:230° for 30SECONDS
  • Contacy Material: Phosphor Bronze or Bronze
  • Insulator Material: Polyester UL94V-0
  • NYLON-6T
  • FINISH:GOLD FLASH

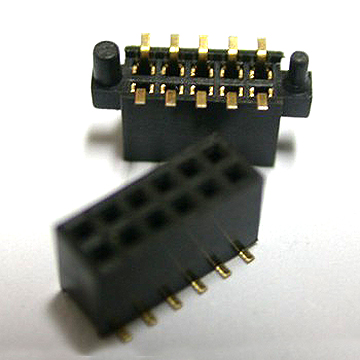

FEMALE HEADER PITCH:1.27*1.27MM DUAL ROW SMT TYPE

2162B3

FEMALE HEADER PITCH:1.27*1.27MM DUAL ROW SMT TYPE

Specifications

  • Current Rating : 1AMP
  • Insulator Resistance :5000MΩMin
  • Dielectric Withstanding :AC 500V
  • Operating Temperature :-40°C~+105°C
  • Max Processing Temp :230° for 30SECONDS
  • Contacy Material :Phosphor Bronze or Bronze
  • Insulator Material :Polyester UL94V-0
  • NYLON-6T
  • FINISH :GOLD FLASH

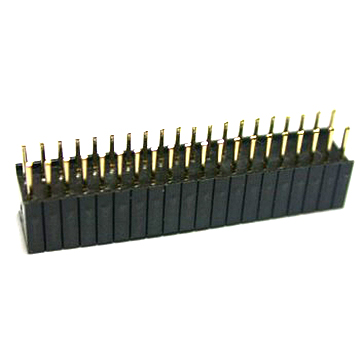

FEMALE HEADER PITCH:1.27*2.54MM DUAL ROW / STRIGHT

2162C1

FEMALE HEADER PITCH:1.27*2.54MM DUAL ROW / STRIGHT

Specifications

  • Current Rating : 1AMP
  • Insulator Resistance :5000MΩMin
  • Dielectric Withstanding :AC 500V
  • Operating Temperature :-40°C~+105°C
  • Max Processing Temp :230° for 30SECONDS
  • Contacy Material :Phosphor Bronze or Bronze
  • Insulator Material :Polyester UL94V-0
  • NYLON-6T
  • FINISH :GOLD FLASH

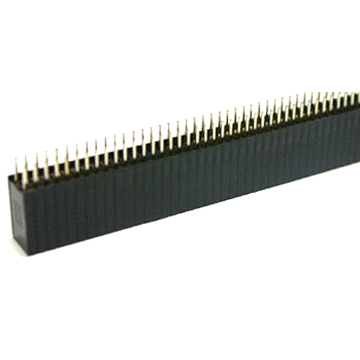

FEMALE HEADER PITCH:1.27*2.54MM DUAL ROW / STRIGHT

2162C2

FEMALE HEADER PITCH:1.27*2.54MM DUAL ROW / STRIGHT

Specifications

  • Current Rating : 1AMP
  • Insulator Resistance :5000MΩMin
  • Dielectric Withstanding :AC 500V
  • Operating Temperature :-40°C~+105°C
  • Max Processing Temp :230° for 30SECONDS
  • Contacy Material :Phosphor Bronze or Bronze
  • Insulator Material :Polyester UL94V-0
  • NYLON-6T
  • FINISH :GOLD FLASH

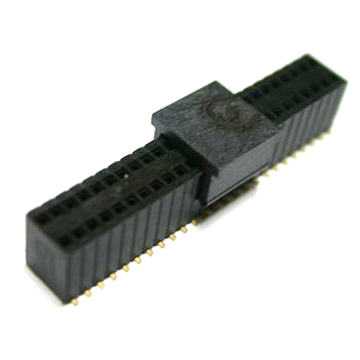

FEMALE HEADER PITCH:1.27*2.54MM DUAL ROW SMT TYPE

2162C3

FEMALE HEADER PITCH:1.27*2.54MM DUAL ROW SMT TYPE

Specifications

  • Current Rating : 1AMP
  • Insulator Resistance :5000MΩMin
  • Dielectric Withstanding :AC 500V
  • Operating Temperature :-40°C~+105°C
  • Max Processing Temp :230° for 30SECONDS
  • Contacy Material :Phosphor Bronze or Bronze
  • Insulator Material :Polyester UL94V-0
  • NYLON-6T
  • FINISH :GOLD FLASH
