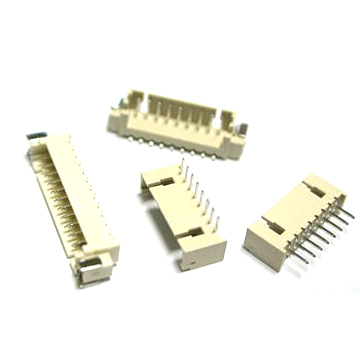

Wafer / Pitch:1.25mm DIP, Straight & Right Angle type

4318-D

Wafer / Pitch:1.25mm DIP, Straight & Right Angle type

Specifications

  • Current Rating: 1A
  • Voltage Rating: 125V AC
  • Contact Resistance : 20mΩ Max.(Initial) 40mΩ Max.(Final)
  • Insulation Resistance: 100MΩ Min. At 500V
  • Dielectric Withstanding Voltage: AC250V/Minute
  • Operating Temperature: -25℃~ +85℃


Material

  • Housing: High Temperature Thermoplastic UL94V–0
  • Contact Pin : Copper Alloy T=0.30mm


Finishes

  • Housing: HTN UL94V–0 Nature H.F
  • Contact Pin: Matte Tin Plated Over Nickel
  • Plating: Matte Tin Plated
Wafer / Pitch:1.25mm DIP, Straight & Right Angle type

4318-S

Wafer / Pitch:1.25mm DIP, Straight & Right Angle type

Specifications

  • Current Rating: 1A
  • Voltage Rating: 125V AC
  • Contact Resistance : 20mΩ Max.(Initial) 40mΩ Max.(Final)
  • Insulation Resistance: 100MΩ Min. At 500V
  • Dielectric Withstanding Voltage: AC250V/Minute
  • Operating Temperature: -40℃~ +85℃


Material

  • Housing: High Temperature Thermoplastic UL94V–0
  • Tab: Copper Alloy T=0.25mm
  • Contact Pin : Copper Alloy T=0.30mm


Finishes

  • Housing: HTN UL94V–0 Nature H.F
  • Tab: Matte Tin Plated Over Nickel
  • Contact Pin: Matte Tin Plated Over Nickel
  • Plating: Matte Tin Plated Over Nickel
