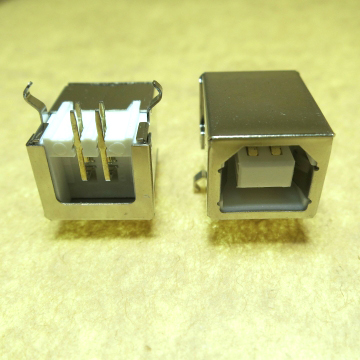

USB B TYPE 90° Full shelled PBT White 30μ" RoHS

3213-W1BCE-30UW

USB B TYPE 90° Full shelled PBT White 30μ" RoHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 500V AC(rms) for 1 Minute(Rev. 2.0)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.

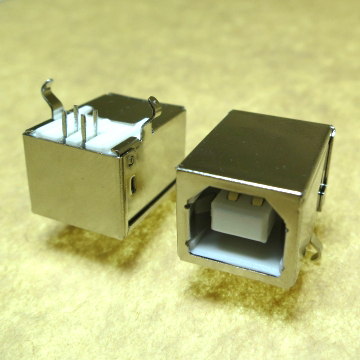

USB B TYPE 90° Full shelled PBT White 1μ" RoHS

3213-W1BCE-01UW

USB B TYPE 90° Full shelled PBT White 1μ" RoHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 750V AC(rms) for 1 Minute(Rev. 1.1)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.

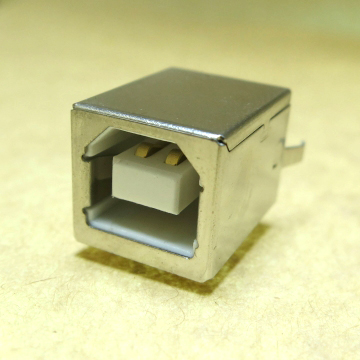

USB B-TYPE DIP Vertical White housing (THRU/HOLE) 30u" ROHS

3213-VWE-30UW

USB B-TYPE DIP Vertical White housing (THRU/HOLE) 30u" ROHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 500V AC(rms) for 1 Minute(Rev. 2.0)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.

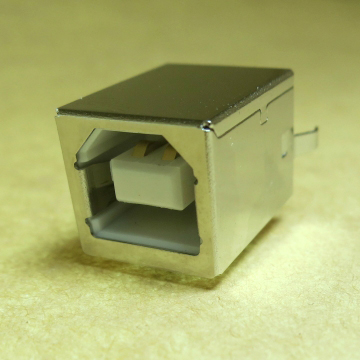

USB B-TYPE DIP Vertical White housing (THRU/HOLE) 1u" ROHS

3213-VWE-01UW

USB B-TYPE DIP Vertical White housing (THRU/HOLE) 1u" ROHS

Specifications Contact Resistance: 30mΩ Max Insulation Resistance: 1000mΩ Min. At 500VDC. Rated Voltage And Current: 1.5A At 250VAC Minimum. Dielectric Withstanding Voltage: 750V AC(rms) for 1 Minute(Rev. 1.1) Durability (Life Test): 1500 Cycles Insertion Force: 35 Newtone Maximum. Extraction Force: 10 Newtone Minimum.

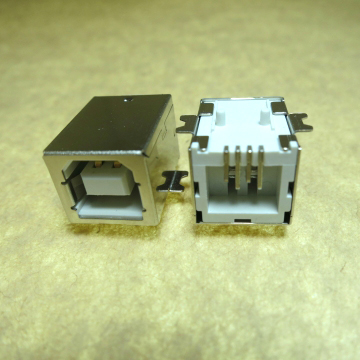

USB B-TYPE 90° SMT NYLON PA9T White 30u" RoHS

3213-BHE-30UW

USB B-TYPE 90° SMT NYLON PA9T White 30u" RoHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 500V AC(rms) for 1 Minute(Rev. 2.0)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.

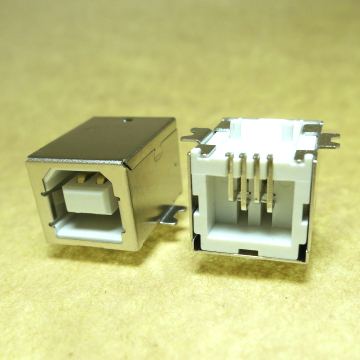

USB B-TYPE 90° SMT NYLON PA9T White  1u" RoHS

3213-BHE-01UW

USB B-TYPE 90° SMT NYLON PA9T White 1u" RoHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 750V AC(rms) for 1 Minute(Rev. 1.1)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.
