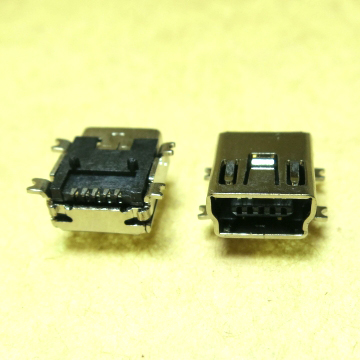

MINI USB B TYPE 5 PIN CONNECTOR SMT

3213-BSME-30UB

MINI USB B TYPE 5 PIN CONNECTOR SMT

Specifications

  • Contact Resistance: 50mΩ Max
  • Insulation Resistance: 100MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1A At 30VAC Minimum.
  • Dielectric Withstanding Voltage: 100V AC for 1 Minute
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 7 Newtone Minimum.

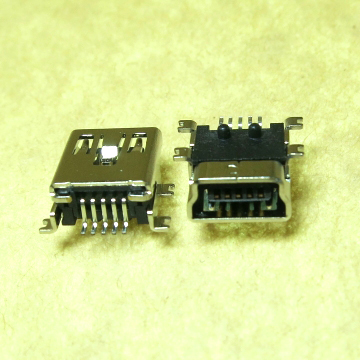

USB MINI B CONNECTOR CONTACT-SMT, SHIELD-SMT

3213-BS1E-30UB

USB MINI B CONNECTOR CONTACT-SMT, SHIELD-SMT

Specifications

  • Contact Resistance: 50mΩ Max
  • Insulation Resistance: 100MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1A At 30VAC Min.
  • Dielectric Withstanding Voltage: 100V AC for 1 Minute
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 7 Newtone Minimum.
