• Specifications

    • Current Rating: 1A
    • Voltage Rating: 125V AC
    • Contact Resistance : 20mΩ Max.(Initial) 40mΩ Max.(Final)
    • Insulation Resistance: 100MΩ Min. At 500V
    • Dielectric Withstanding Voltage: AC250V/Minute
    • Operating Temperature: -40℃~ +85℃


    Material

    • Housing: High Temperature Thermoplastic UL94V–0
    • Tab: Copper Alloy T=0.25mm
    • Contact Pin : Copper Alloy T=0.30mm


    Finishes

    • Housing: HTN UL94V–0 Nature H.F
    • Tab: Matte Tin Plated Over Nickel
    • Contact Pin: Matte Tin Plated Over Nickel
    • Plating: Matte Tin Plated Over Nickel

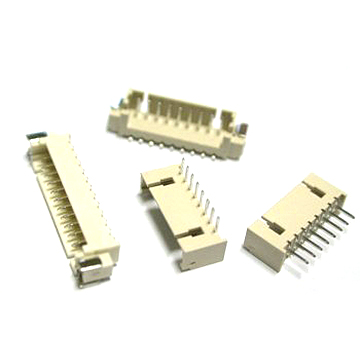

    4318-S03_90D 4318-S04_180D
