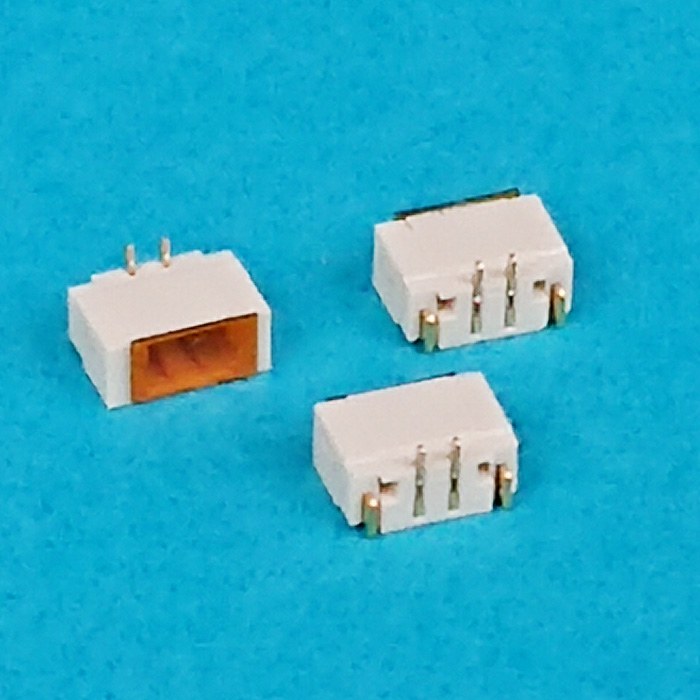

432A Wafer To board wafer 0.8mm SMT Single Row

Specifications

• Current Rating: 0.5A AC/DC
• Voltage Rating: 30V AC/DC
• Contact Resistance: 20mΩ Max.
• Insulation Resistance: 100MΩ Min.
• Withstand Voltage: AC200V/Minute
• Operating Temperature: -25℃ ~ +85℃


Material

• Housing: Thermoplastic UL94V-0
• Contact Pin: Copper Alloy T=0.15
• Tab: Copper Alloy T=0.2


Finishes

• Housing: LCP UL94V-0 Natural
• Contact Pin: Gold Plated
• Tab: Gold Plated
