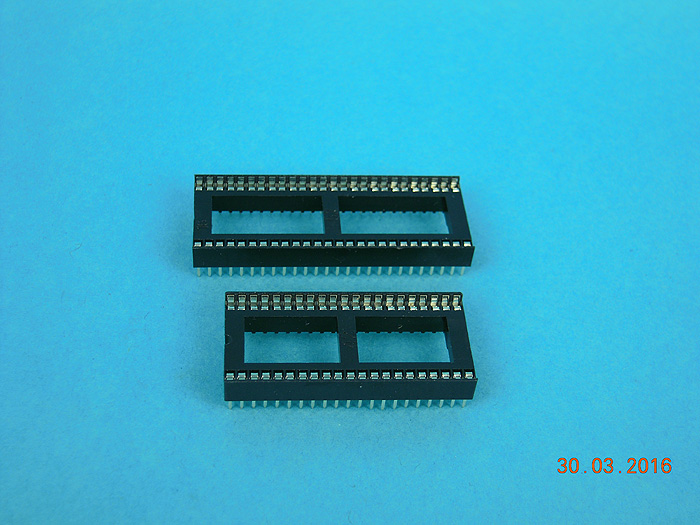

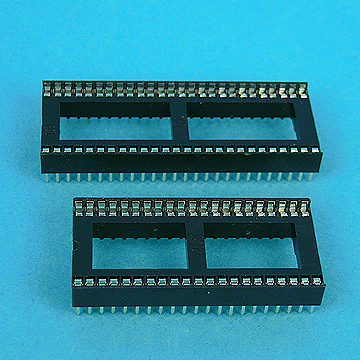

    2122-XXXE I.C Socket Stamped Pin Pitch:1.778mm RoHS

    Specifications

    • Current Rating: 1A
    • Dielectric withstanding Voltage: 1000v RMS/minute
    • Insulator resistance: 5000 Megohms min.
    • Contact resistance: 20 milliohms intial
    • 30 milliohms after test.
    • Operating temperatures :-55℃ to +85℃
    • Insertion force: 340g (12 oz) max.per contact
    • Withdrawal force: 80g (2.82oz) min.per contact


    Material

    • Contact: phosphor Bronze thickness 0.17mm
    • Contact Plating: Sn-Cu plated 120u"~200u"
    • Insulator: PBT-4830, UL 94V-0

    2122-001 2122-002
