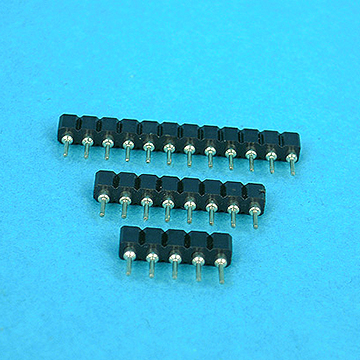

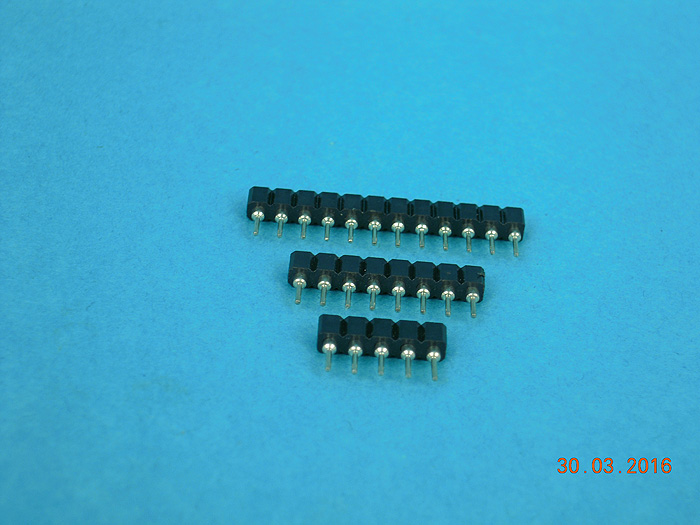

• 2150-XXE Pin Header Machine Pin Pitch: 2.54mm Single Row Type RoHS

    2150-XXE Pin Header Machine Pin Pitch: 2.54mm Single Row Type RoHS

    Specifications

    • Current Rating: 3.0A AC/DC
    • Voltage Rating:100V AC/DC
    • Contact Resistance: 10m ohm. max.
    • Insulator Resistance:5000M ohm. Min.
    • Withstanding Voltage:1000V AC For One Minute
    • Operating Temperature Range:-40℃ ~ +105℃


    Material And Finish

    • Insulator : High Temp. Plastic(PPS UL94V-0)
    • Standard Color: Black
    • Contact : Beryllium Copper(Becu) Gold Plated
    • Sleeve Barrel:Brass Tin Plated

    2150-XXE
