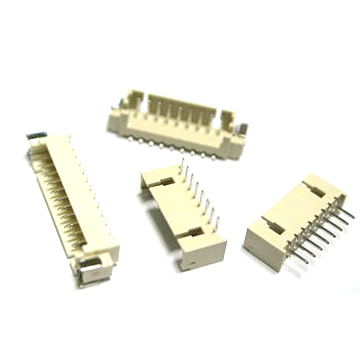

• 4318-D Wafer / Pitch:1.25mm DIP, Straight & Right Angle type

    4318-D Wafer / Pitch:1.25mm DIP, Straight & Right Angle type

    Specifications

    • Current Rating: 1A
    • Voltage Rating: 125V AC
    • Contact Resistance : 20mΩ Max.(Initial) 40mΩ Max.(Final)
    • Insulation Resistance: 100MΩ Min. At 500V
    • Dielectric Withstanding Voltage: AC250V/Minute
    • Operating Temperature: -25℃~ +85℃


    Material

    • Housing: High Temperature Thermoplastic UL94V–0
    • Contact Pin : Copper Alloy T=0.30mm


    Finishes

    • Housing: HTN UL94V–0 Nature H.F
    • Contact Pin: Matte Tin Plated Over Nickel
    • Plating: Matte Tin Plated

    4318-D03_90D 4318-D04_180D
