• 3213-BHE-30UW USB B-TYPE 90° SMT NYLON PA9T White 30u" RoHS

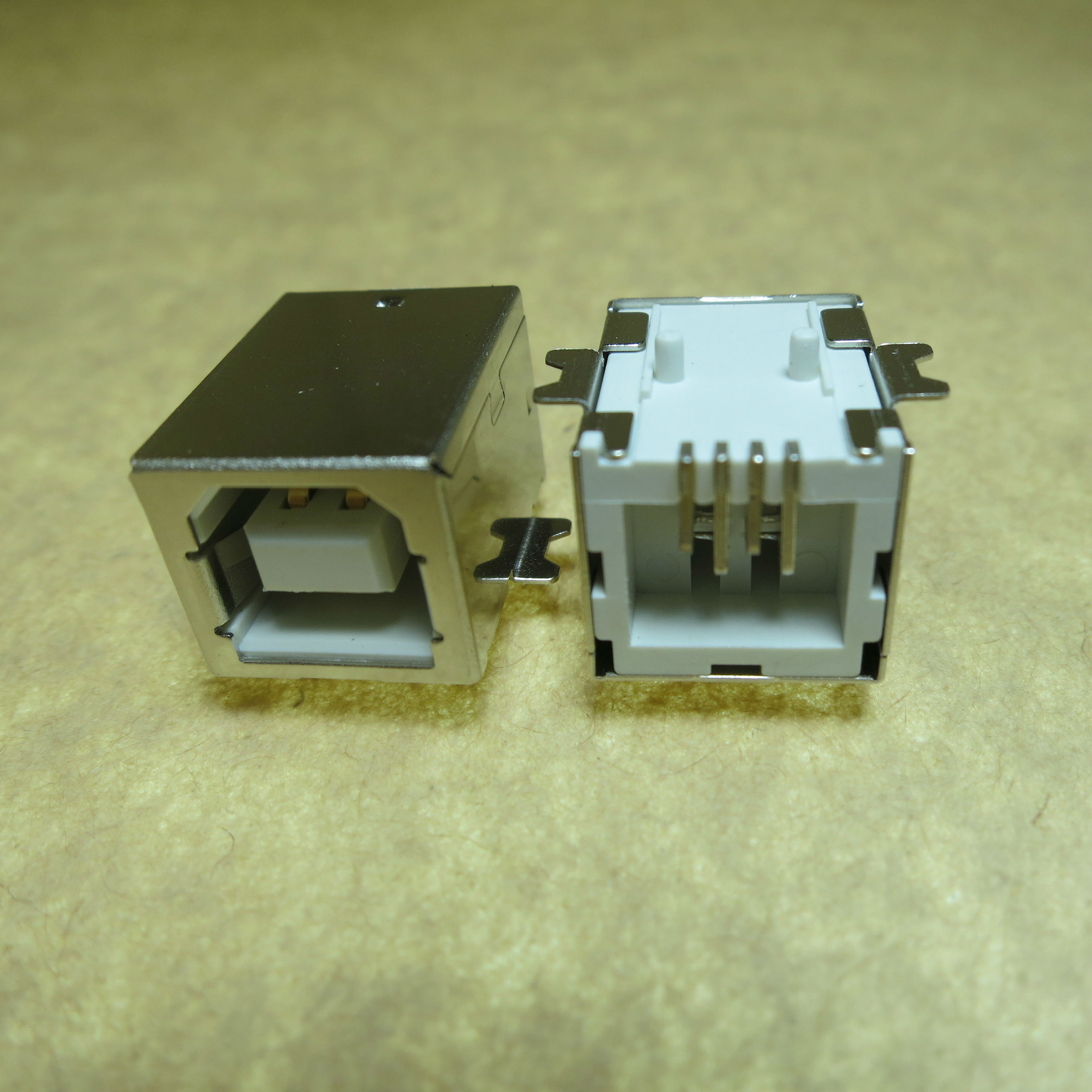

    3213-BHE-30UW USB B-TYPE 90° SMT NYLON PA9T White 30u" RoHS

    Specifications

    • Contact Resistance: 30mΩ Max
    • Insulation Resistance: 1000MΩ Min. At 500VDC.
    • Rated Voltage And Current: 1.5A At 250VAC Minimum.
    • Dielectric Withstanding Voltage: 500V AC(rms) for 1 Minute(Rev. 2.0)
    • Durability (Life Test): 1500 Cycles
    • Insertion Force: 35 Newtone Maximum.
    • Extraction Force: 10 Newtone Minimum.

    3213-005
