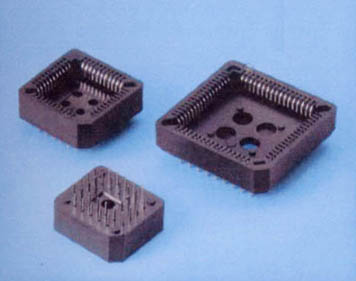

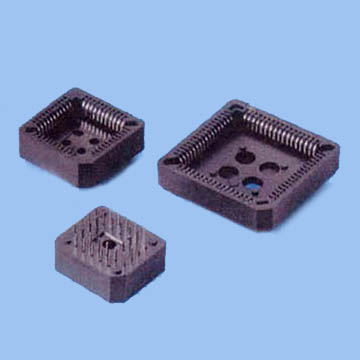

• 2110 PLCC SOCKET DIP TYPE Pitch:2.54mm PBT and PPS RoHS (11/07)
    2110 PLCC SOCKET DIP TYPE Pitch:2.54mm PBT and PPS RoHS (11/07)

    2110 PLCC SOCKET DIP TYPE Pitch:2.54mm PBT and PPS RoHS (11/07)

    Specifications

    • Insulator Material: PBT & 30% Glass Fiber (UL 94V-0)/ PPS & 40% Glass Fiber (UL 94V-0)
    • Contact Resistance: 30mΩ Max at DC 100MA
    • Insulation Resistance: 1000mΩ Min at DC 500V
    • Current Rating: 1AMP
    • Dielectric Withstanding Voltage: AC 500V for 1minute
    • Temperature Rating:-55°C ~ +105°C
    • Contact Material: Phosphor Bronze

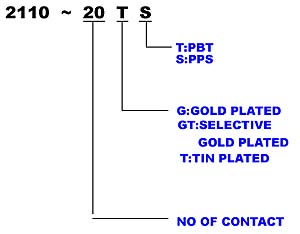

    2110-TTE_2110xxTTE 2110-TSE_2110xxTSE
