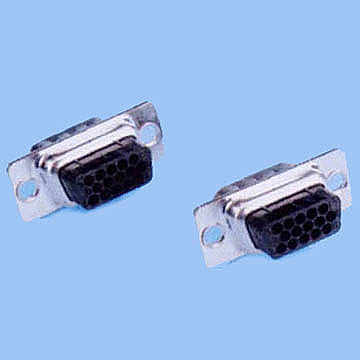

• 3226 3226 D-SUB HIGH DENSITY CONNECTOR CRIMP TYPE

    3226 3226 D-SUB HIGH DENSITY CONNECTOR CRIMP TYPE

    Specifications

    • Shell: Steel, Tin-plated
    • Insulator: PBT + 30% Glass Fiber, UL94V-0
    • Contact: Brass or Phosphor Bronze
    • Current Rating (Max): 3 amp AC/DC
    • Withstanding Voltage: 1000 VAC
    • Insulation Resistance (Min): 1000 mΩ
    • Contact Resistance (Max): 30 mΩ
    • Operating Temperature: -55℃ ~ +105℃

    3226-code1 3226-code2 3226-code3 3226-code4 3226-code5 3226-code6
