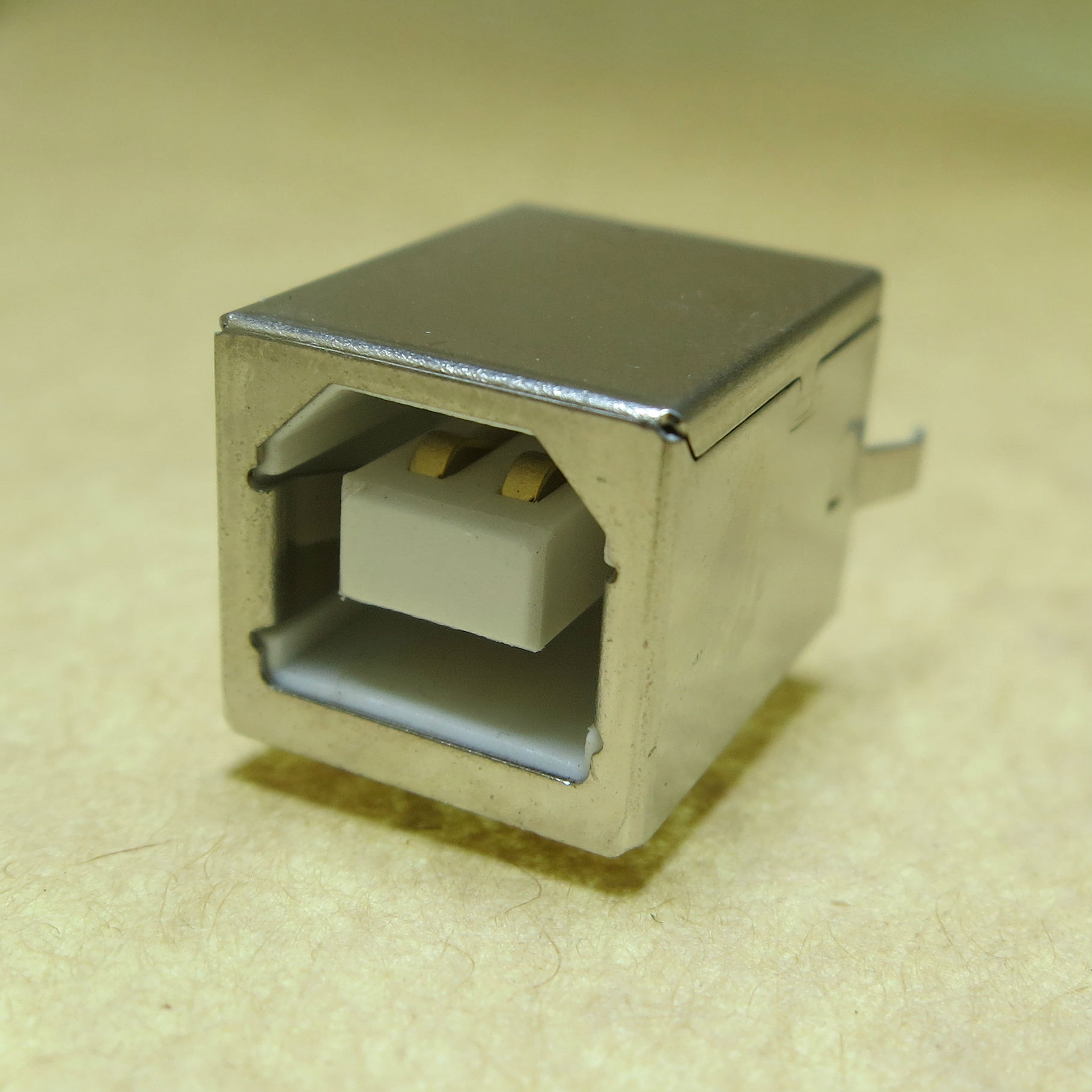

• 3213-VWE-30UW USB B-TYPE DIP Vertical White housing (THRU/HOLE) 30u" ROHS

    3213-VWE-30UW USB B-TYPE DIP Vertical White housing (THRU/HOLE) 30u" ROHS

    Specifications

    • Contact Resistance: 30mΩ Max
    • Insulation Resistance: 1000MΩ Min. At 500VDC.
    • Rated Voltage And Current: 1.5A At 250VAC Minimum.
    • Dielectric Withstanding Voltage: 500V AC(rms) for 1 Minute(Rev. 2.0)
    • Durability (Life Test): 1500 Cycles
    • Insertion Force: 35 Newtone Maximum.
    • Extraction Force: 10 Newtone Minimum.

    3213-007
