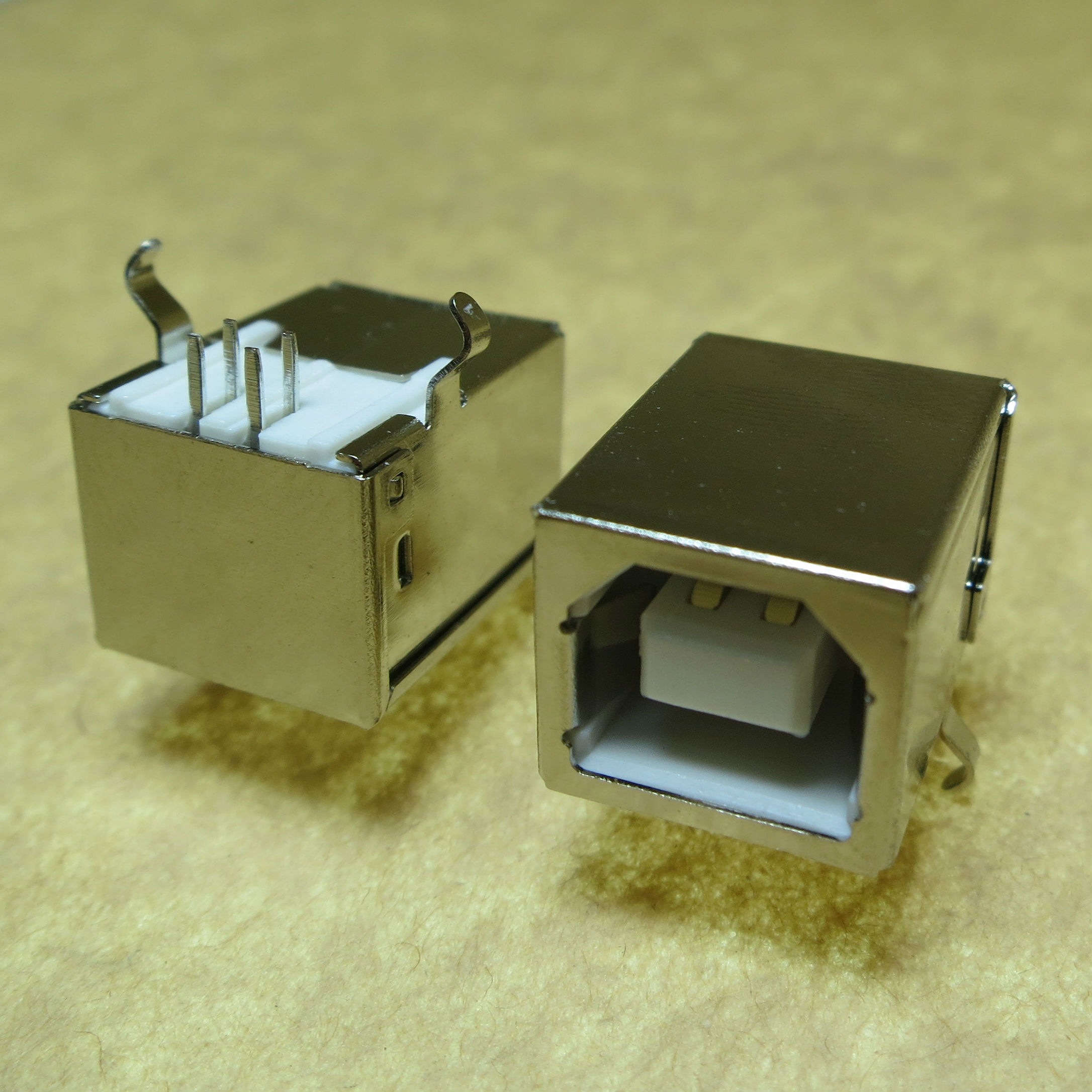

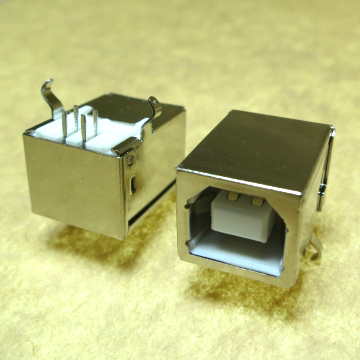

• 3213-W1BCE-01UW USB B TYPE 90° Full shelled PBT White 1μ" RoHS

    3213-W1BCE-01UW USB B TYPE 90° Full shelled PBT White 1μ" RoHS

    Specifications

    • Contact Resistance: 30mΩ Max
    • Insulation Resistance: 1000MΩ Min. At 500VDC.
    • Rated Voltage And Current: 1.5A At 250VAC Minimum.
    • Dielectric Withstanding Voltage: 750V AC(rms) for 1 Minute(Rev. 1.1)
    • Durability (Life Test): 1500 Cycles
    • Insertion Force: 35 Newtone Maximum.
    • Extraction Force: 10 Newtone Minimum.

    3213-008
