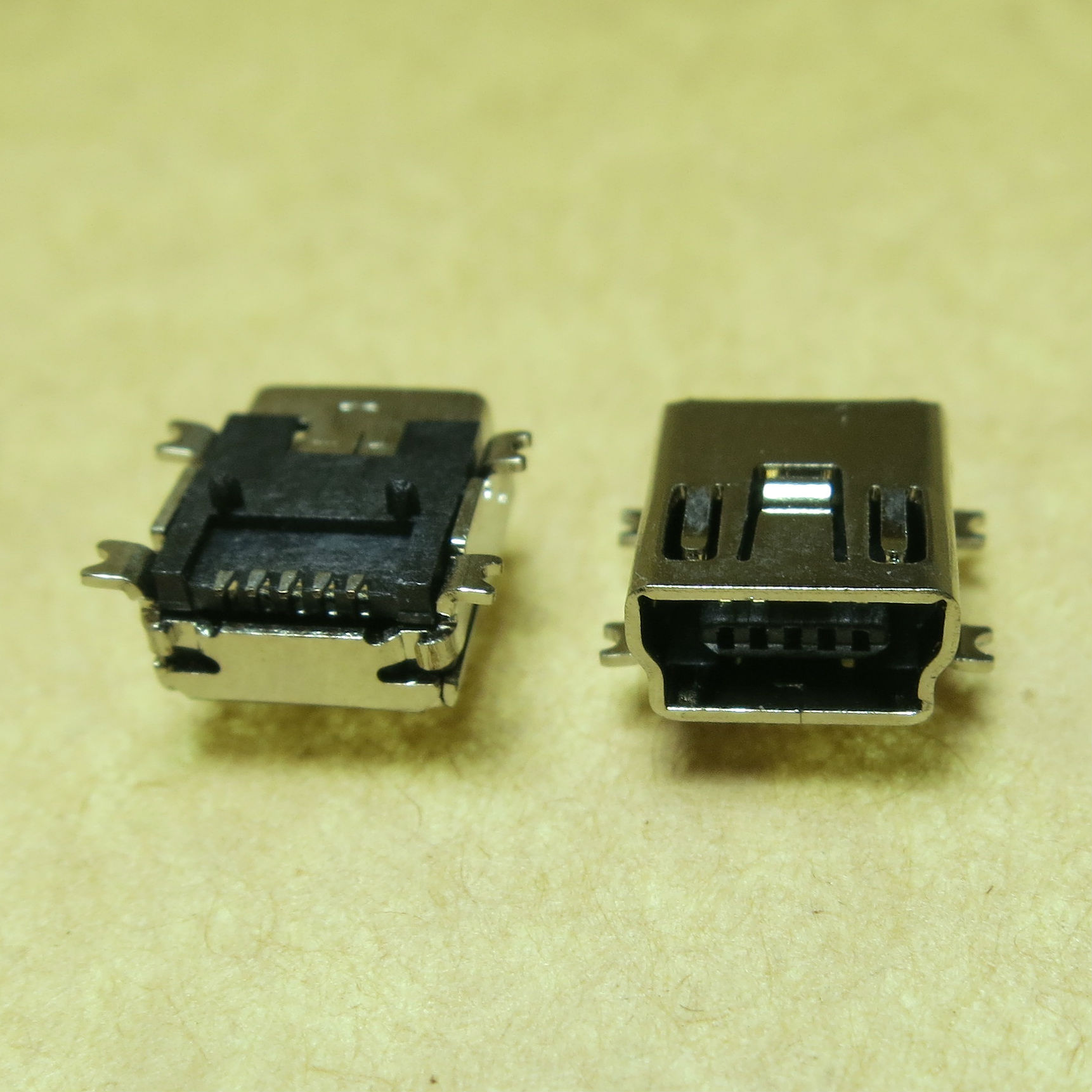

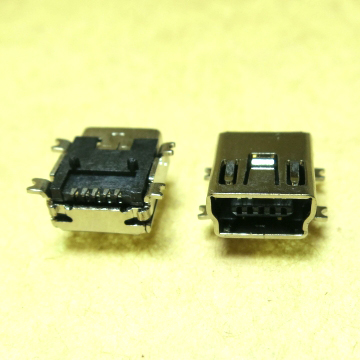

• 3213-BS1E-30UB USB MINI B CONNECTOR CONTACT-SMT, SHIELD-SMT

    3213-BS1E-30UB USB MINI B CONNECTOR CONTACT-SMT, SHIELD-SMT

    Specifications

    • Contact Resistance: 50mΩ Max
    • Insulation Resistance: 100MΩ Min. At 500VDC.
    • Rated Voltage And Current: 1A At 30VAC Min.
    • Dielectric Withstanding Voltage: 100V AC for 1 Minute
    • Durability (Life Test): 1500 Cycles
    • Insertion Force: 35 Newtone Maximum.
    • Extraction Force: 7 Newtone Minimum.

    3213-012
