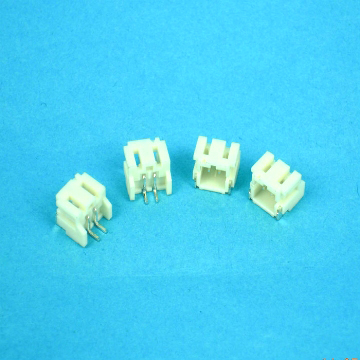

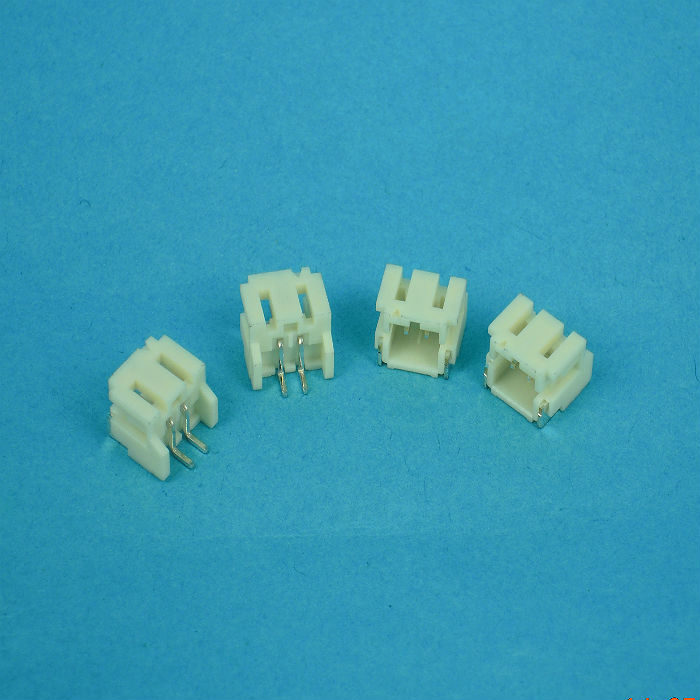

• 4320-S Wafer / pitch: 2.0mm, Straight & Right Angle Type

    4320-S Wafer / pitch: 2.0mm, Straight & Right Angle Type

    Specifications

    • Current Rating: 2A
    • Voltage Rating: 100V AC/DC
    • Contact Resistance: 20mΩ Max.
    • Insulation Resistance: 1000MΩ Min.
    • Dielectric Withstanding Voltage: 800 VAC/Minute
    • Operating Temperature:-25℃~85℃


    Material

    • Housing: High Temperature Thermoplastic UL94V-0
    • Contact Pin: Copper Alloy SQ Pin=0.50mm
    • Tab: Copper Alloy


    Finishes

    • Housing: HTN UL94V-0 Natural None Halogen Free
    • Contact Pin: Bright Tin Plated Over Nickel
    • Tab: Bright Tin Over Nickel

    4320-S01_90D 4320-S02_180D
