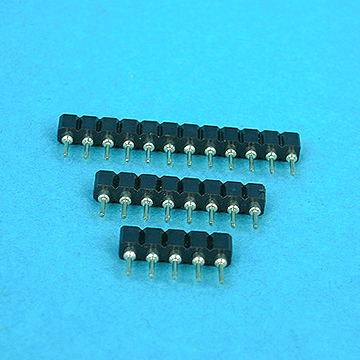

Pin Header Machine Pin Pitch: 2.54mm Single Row Type RoHS

2150-XXE

Pin Header Machine Pin Pitch: 2.54mm Single Row Type RoHS

Specifications

  • Current Rating: 3.0A AC/DC
  • Voltage Rating:100V AC/DC
  • Contact Resistance: 10m ohm. max.
  • Insulator Resistance:5000M ohm. Min.
  • Withstanding Voltage:1000V AC For One Minute
  • Operating Temperature Range:-40℃ ~ +105℃


Material And Finish

  • Insulator : High Temp. Plastic(PPS UL94V-0)
  • Standard Color: Black
  • Contact : Beryllium Copper(Becu) Gold Plated
  • Sleeve Barrel:Brass Tin Plated
