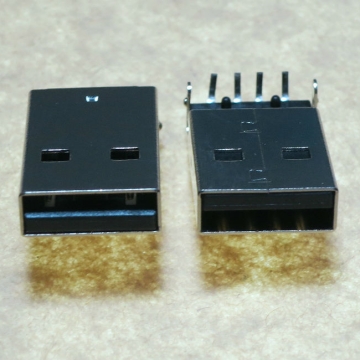

USB A-TYPE R/A Black  housing 1u" RoHS

3211-APDE-01UB

USB A-TYPE R/A Black housing 1u" RoHS

Specifications

  • Contact Resistance: 30mΩ Ma
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 750V AC(rms) for 1 Minute(Rev.1.1)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.
USB A-TYPE FLAT 4Pin DIP ROHS

3210-W1BCE-30UW

USB A-TYPE FLAT 4Pin DIP ROHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 500V AC(rms) for 1 Minute(Rev.2.0)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.

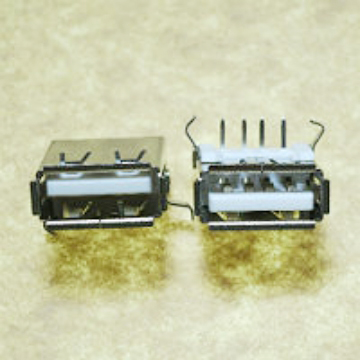

USB A-TYPE WITH BACK COVER 90° 1u" WHITE PBT RoHS

3210-W1BCE-01UW

USB A-TYPE WITH BACK COVER 90° 1u" WHITE PBT RoHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 750V AC(rms) for 1 Minute(Rev. 1.1)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.

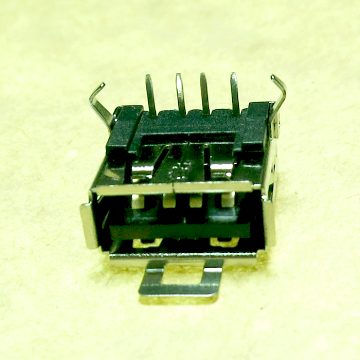

USB A-TYPE WITH BACK COVER 90° PBT BK 1u" RoHS

3210-W1BCSE-01UB

USB A-TYPE WITH BACK COVER 90° PBT BK 1u" RoHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 750V AC(rms) for 1 Minute(Rev. 1.1)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.

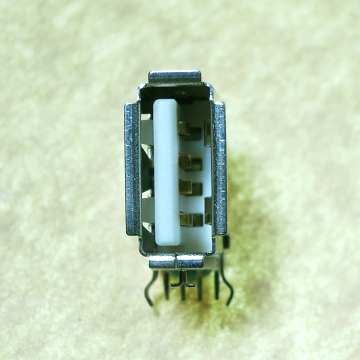

USB A-TYPE UPRIGHT DIP NYLON PA9T WHITE G/F RoHS

3210-SR1E-01UW

USB A-TYPE UPRIGHT DIP NYLON PA9T WHITE G/F RoHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 750V AC(rms) for 1 Minute(Rev. 1.1)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.

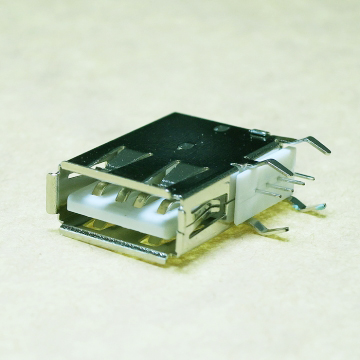

USB A TYPE 90° Upright White Housing  RoHS

3210-SRWE-01UW

USB A TYPE 90° Upright White Housing RoHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 750V AC(rms) for 1 Minute(Rev. 1.1)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.

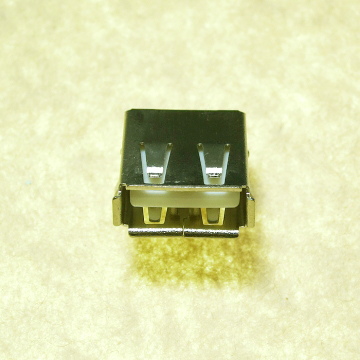

USB A TYPE 90°(SMT TYPE) With Back Cover RoHS

3210-SMT-W1E-01UW

USB A TYPE 90°(SMT TYPE) With Back Cover RoHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage:

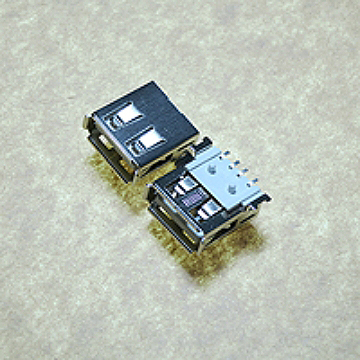

USB Type A FLAT R/A SMT 4Pin NYLON PA9T White  1u" RoHS

3210-SMT-W2E-01UW

USB Type A FLAT R/A SMT 4Pin NYLON PA9T White 1u" RoHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 750V AC(rms) for 1 Minute(Rev. 1.1)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.

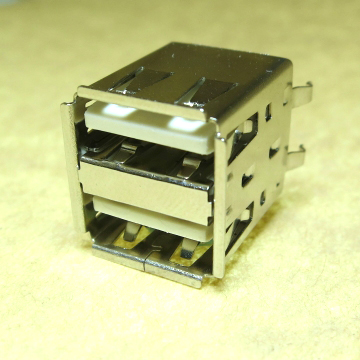

USB A-TYPE Double deck  Vertical White housing  30μ" RoHS

3212-DKE-30UW

USB A-TYPE Double deck Vertical White housing 30μ" RoHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000mΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 750V AC(rms) for 1 Minute(Rev.1.1)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.

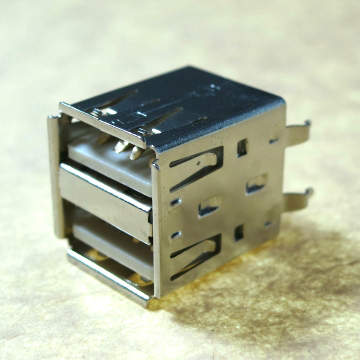

USB A-TYPE Double deck  Vertical White housing  1μ" RoHS

3212-DKE-01UW

USB A-TYPE Double deck Vertical White housing 1μ" RoHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 750V AC(rms) for 1 Minute(Rev. 1.1)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.
USB PLUG SMT A-TYPE 4P Black   1u" RoHS

3211-APSE-01UB

USB PLUG SMT A-TYPE 4P Black 1u" RoHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 750V AC(rms) for 1 Minute(Rev. 1.1)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.

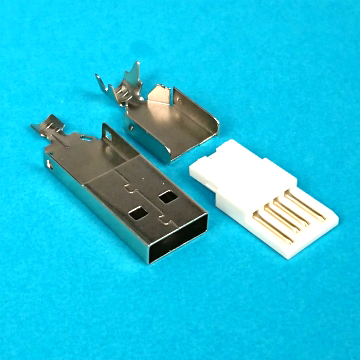

USB A TYPE SOLDER(M)

3211-MSE-xxUB

USB A TYPE SOLDER(M)

Specifications

  • Current rating: 1 A Max.
  • Dielectric withstanding voltage: 500 V(ac) for 1 minute.
  • Contact resistance: 30 mΩ Max.
  • Insulation resistance: 1000 MΩ Min at DC 500V.
  • Temperature range: -55℃~ +105℃


Material

  • Insulator: P.B. T UL 94-V0 rated.
  • Contact: Brass , t=0.25mm.
  • Shell: Cold Rolled Steel, t=0.35mm.


Finishes

  • Contacts: Gold flashed 1u ", 30u".
  • Shell: Nickel plated.

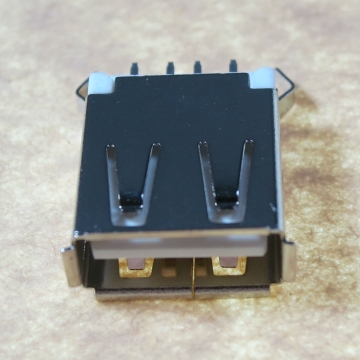

USB A-TYPE 180° Vertical White housing 1u" RoHS

3211-V1WE-01UW

USB A-TYPE 180° Vertical White housing 1u" RoHS

Specifications

  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 1000MΩ Min. At 500VDC.
  • Rated Voltage And Current: 1.5A At 250VAC Minimum.
  • Dielectric Withstanding Voltage: 750V AC(rms) for 1 Minute(Rev. 1.1)
  • Durability (Life Test): 1500 Cycles
  • Insertion Force: 35 Newtone Maximum.
  • Extraction Force: 10 Newtone Minimum.
