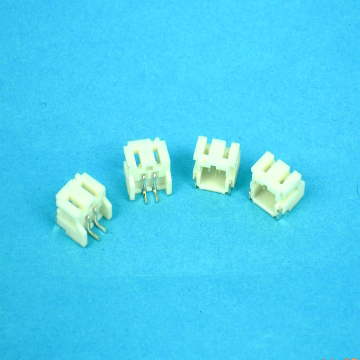

Wafer / pitch: 2.0mm, Straight & Right Angle type (11/07)

4320

Wafer / pitch: 2.0mm, Straight & Right Angle type (11/07)

Specifications

  • Available in 2 Through 15 Circuits
  • Insulator Material: Nylon 66 UL94V-0
  • Contact: 0.5mm (.02´´)tin Plated Square Pin
  • Plating: G: Gold Plated T: Tin Plated
  • Type: S: Straight R: Right Angle
  • Tolerance±0.2

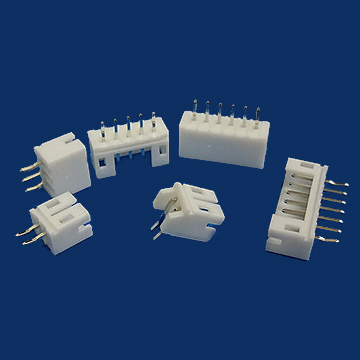

Wafer / pitch: 2.0mm, Straight & Right Angle Type

4320-S

Wafer / pitch: 2.0mm, Straight & Right Angle Type

Specifications

  • Current Rating: 2A
  • Voltage Rating: 100V AC/DC
  • Contact Resistance: 20mΩ Max.
  • Insulation Resistance: 1000MΩ Min.
  • Dielectric Withstanding Voltage: 800 VAC/Minute
  • Operating Temperature:-25℃~85℃


Material

  • Housing: High Temperature Thermoplastic UL94V-0
  • Contact Pin: Copper Alloy SQ Pin=0.50mm
  • Tab: Copper Alloy


Finishes

  • Housing: HTN UL94V-0 Natural None Halogen Free
  • Contact Pin: Bright Tin Plated Over Nickel
  • Tab: Bright Tin Over Nickel
