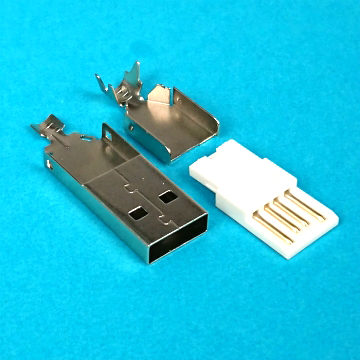

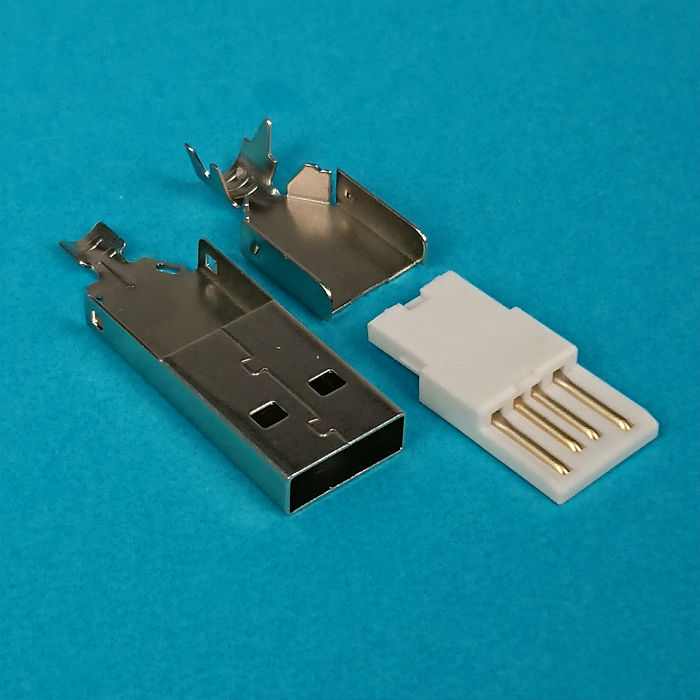

3211-MSE-xxUB USB A TYPE SOLDER(M)

Specifications

• Current rating: 1 A Max.
• Dielectric withstanding voltage: 500 V(ac) for 1 minute.
• Contact resistance: 30 mΩ Max.
• Insulation resistance: 1000 MΩ Min at DC 500V.
• Temperature range: -55℃~ +105℃


Material

• Insulator: P.B. T UL 94-V0 rated.
• Contact: Brass , t=0.25mm.
• Shell: Cold Rolled Steel, t=0.35mm.


Finishes

• Contacts: Gold flashed 1u ", 30u".
• Shell: Nickel plated.
